Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design.

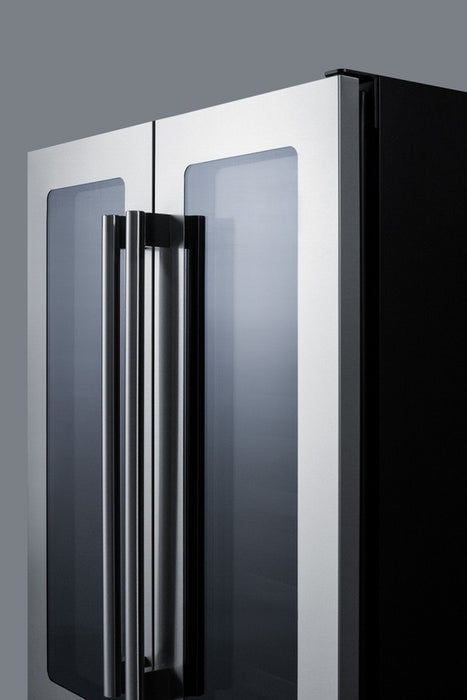

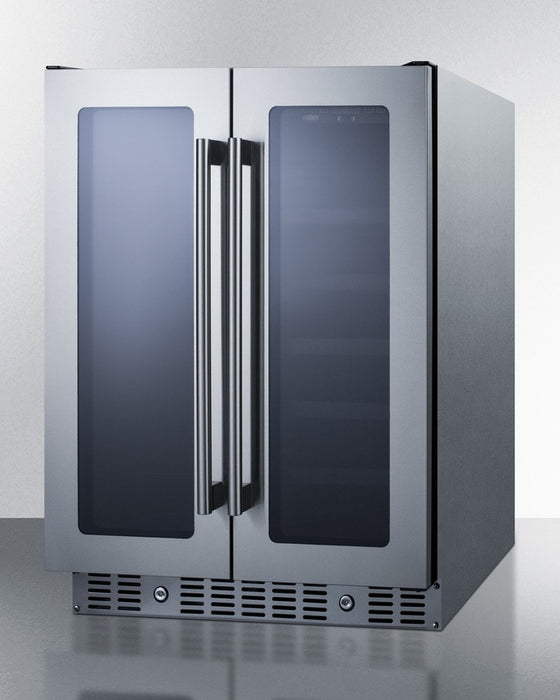

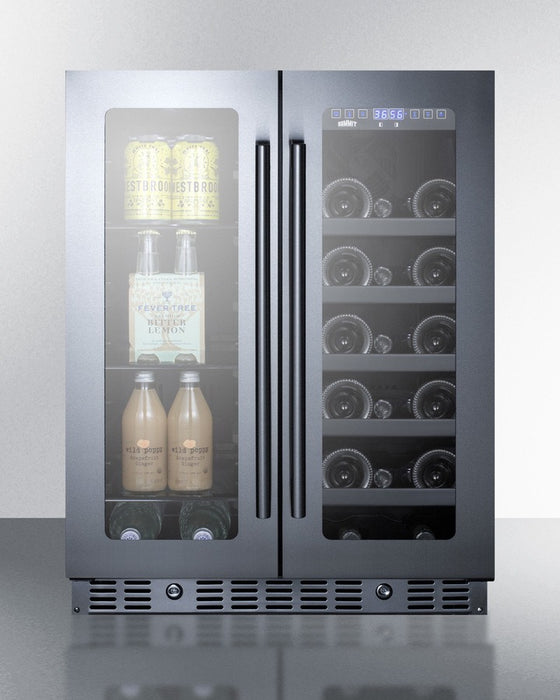

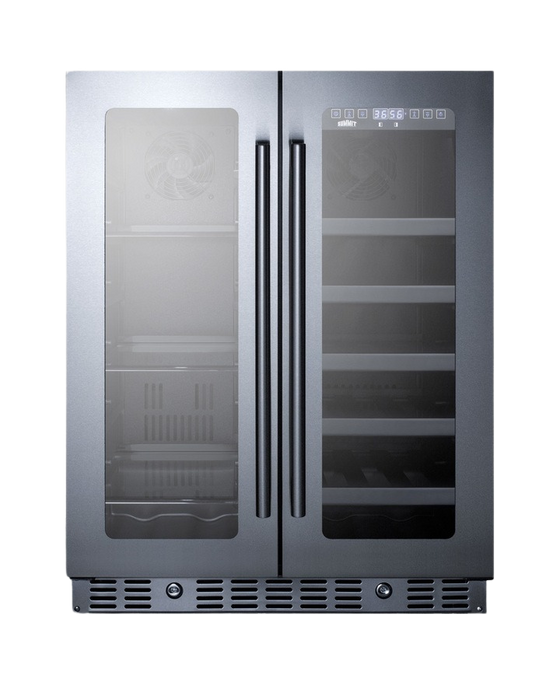

Sized with a convenient 24" footprint, the ALFD24WBVCSS is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. For added luxury, the ALFD24WBVCSS features a fully wrapped cabinet in 304 grade stainless steel.

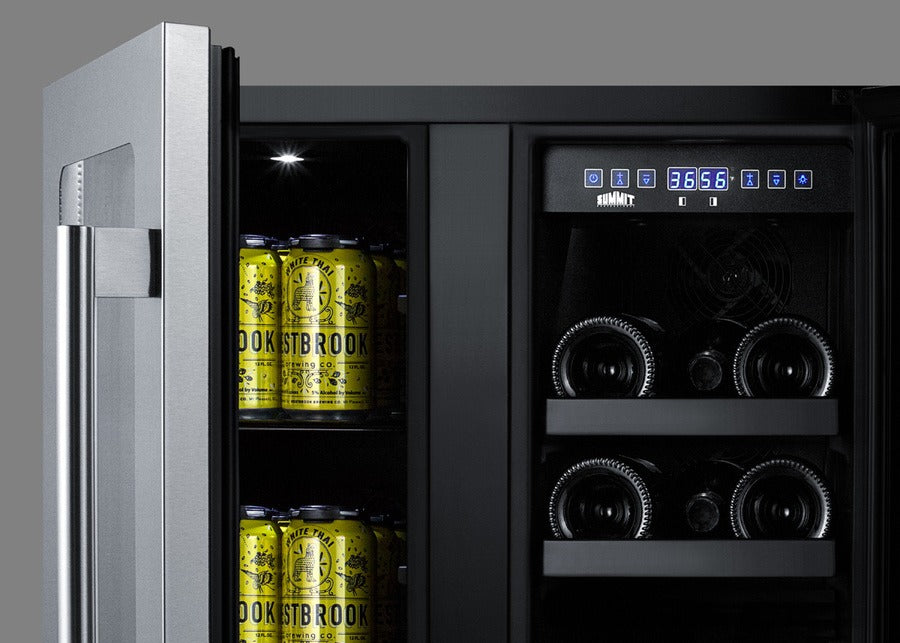

The ALFD24WBVCSS features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43ºF temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72ºF. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 32.0" (81 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.38" (59 cm)
Nominal Depth: 23.0" (58 cm)
Depth: 22.75" (58 cm)
Depth with Handle: 24.63" (63 cm)
Depth with door at 90°: 33.0" (84 cm)
Capacity: 4.6 cu.ft. (130 L)
Bottles: 21 bottles
Defrost Type: Automatic
Door: Glass
Cabinet: Stainless Steel
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Amps: 1.0
Voltage/Frequency: 115 V AC/60 Hz
Weight: 105.0 lbs. (48 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101061467
Wine Cellar
Number of Zones: 2
Door Swing: French
Reversible: No
Height Adjustable: Yes
Adjustable Shelves: Yes
Shelf Type: Glass and Wood
Shelf Qty: 8
Thermostat Type: Digital
Interior Light: Yes
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.06 oz.
High Side PSI: 270.0
Low Side PSI: 105.0
Temperature Range: Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF
Level Legs: 4
Sound Level: 33.3 dB
Dimensions
Interior Height 1: 25.38" (64 cm)
Interior Width 1: 8.38" (21 cm)
Interior Depth 1: 17.5" (44 cm)
Interior Height 2: 25.38" (64 cm)
Interior Width 2: 8.38" (21 cm)
Interior Depth 2: 17.5" (44 cm)
Compressor Step Height: 3.5" (9 cm)
Compressor Step Width: 8.38" (21 cm)
Compressor Step Depth: 5.0" (13 cm)
Key Features
ADA compliant
Sized at just 32" high for installation under lower ADA compliant counters

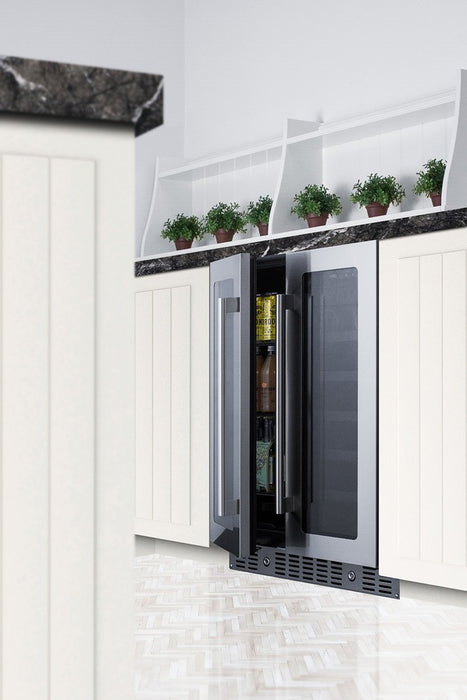

Built-in capable
Make the best use of space by installing your appliance under the counter
Height adjustable
Leveling legs can raise the unit to up to 33.5" for more standardized counters
Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Stainless steel wrapped cabinet
Exterior cabinet features a 304 grade stainless steel wrapped surface
Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones
Independent zones let you store beverages in the left compartment and wine in the right
Factory installed locks
Each door includes a keyed lock for optional security

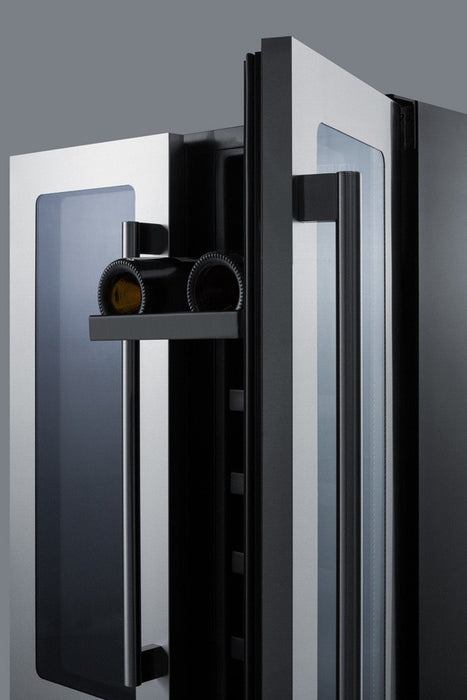

Adjustable wooden shelves
Wine zone includes size adjustable wooden shelves in a modern jet black finish
Adjustable glass shelves
Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
LED lighting
Attractive and energy efficient LED lighting offers an elegant presentation
Automatic defrost
Reduced user maintenance with automatic defrost operation
Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom
French door swing
Two side-by-side doors with French door opening

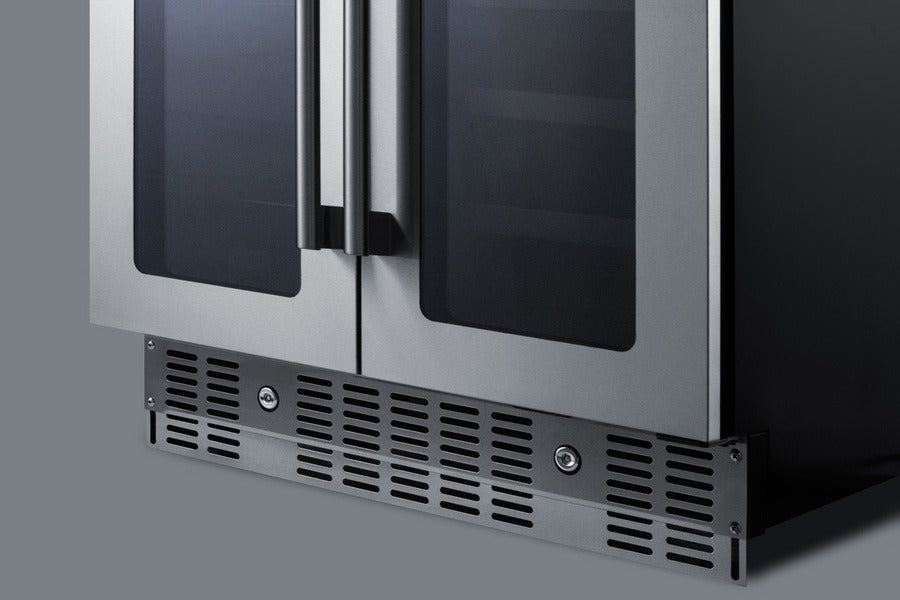

Stainless steel kickplate
Completes the professional look down to the toe kick
High temperature alarm
Audibly alerts if the interior temperature rises out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the doors are left ajar for over 60 seconds
Sabbath mode
Allows you to disable certain electrical functions for up to 48 hours for periods of observance
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle cord
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space saving design with easier cleanability
Integrated hinge
Door hinge adds no additional height, making it easier to install under a counter
Kickplate extender included
Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
