Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

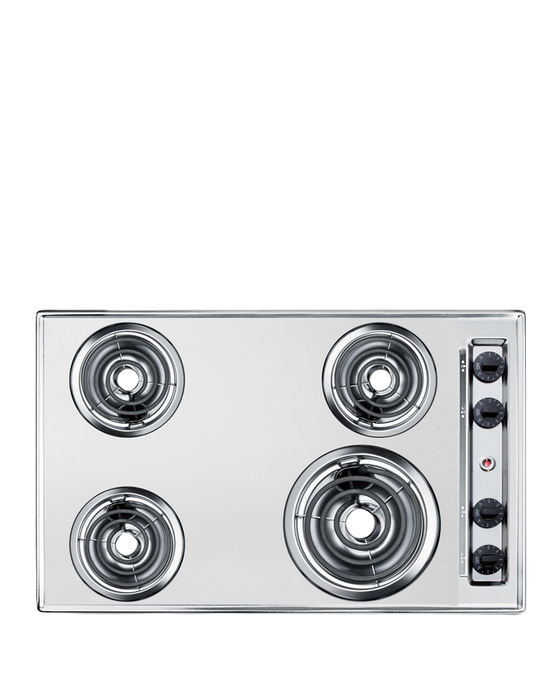

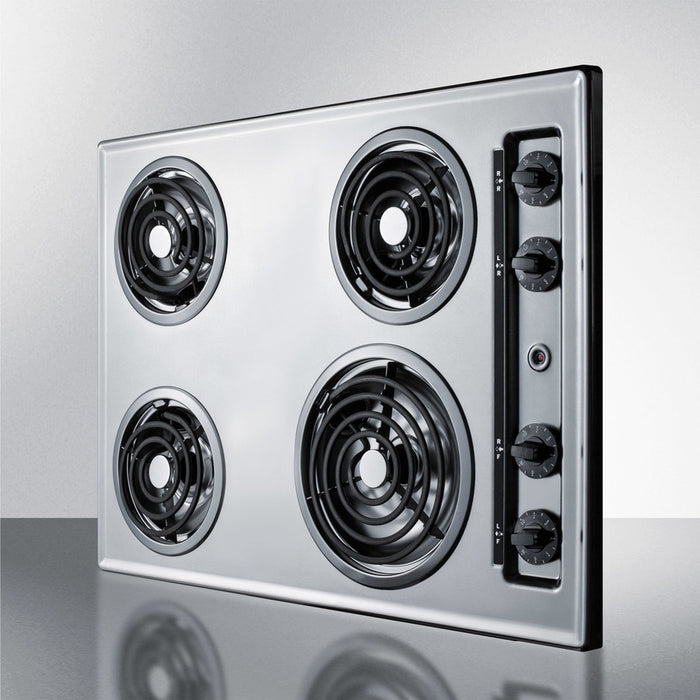

The ZEL05 is a 30" wide 220-240V electric cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.
Specifications
Overview
Nominal Height: 4.0" (10 cm)
Height of Cabinet: 3.75" (10 cm)
Nominal Width: 30.0" (76 cm)
Width: 29.75" (76 cm)
Nominal Depth: 20.0" (51 cm)
Depth: 20.0" (51 cm)
Cabinet: Chrome
US Electrical Safety: UL
Canadian Electrical Safety: ULC
Amps: 30.0
Voltage/Frequency: 230 V AC/60 Hz
Weight: 30.0 lbs. (14 kg)
Parts & Labor Warranty: 1 Year
UPC: 761101061665
Electric Cooktop
Heating Type: Radiant
Element Type: Coils
Number of Elements: 4
Controls: Dial
Countertop Cutout Width: 28.38" (72 cm)
Countertop Cutout Depth: 18.63" (47 cm)
Element #1 Size: 6.0" (15 cm)
Element #1 Wattage: 675.0
Element #2 Size: 8.0" (20 cm)
Element #2 Wattage: 950.0
Element #3 Size: 6.0" (15 cm)
Element #3 Wattage: 675.0
Element #4 Size: 6.0" (15 cm)
Element #4 Wattage: 675.0
Power Cord Included: No
Features
Made in the USA
Designed and constructed domestically
Classic fit
Fits 28 3/8" W x 18 5/8" D counter cutouts
Chrome finish
Metallic design for a professional look with lasting durability
Coil elements
Traditional design offers reliable heating and strong durability for everyday use
Safety burners with low wattage outputs
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
8" burner
Larger element is ideal for heating wider pots and pans
Three 6" burners
Standard burners accommodate most heating needs
Chrome drip pans
Each coil element includes a removable chrome pan to catch spills for easier cleanup
Recessed top
Curved design helps to contain spills on the surface
Push-to-turn controls
Knobs require a small amount of force for added safety

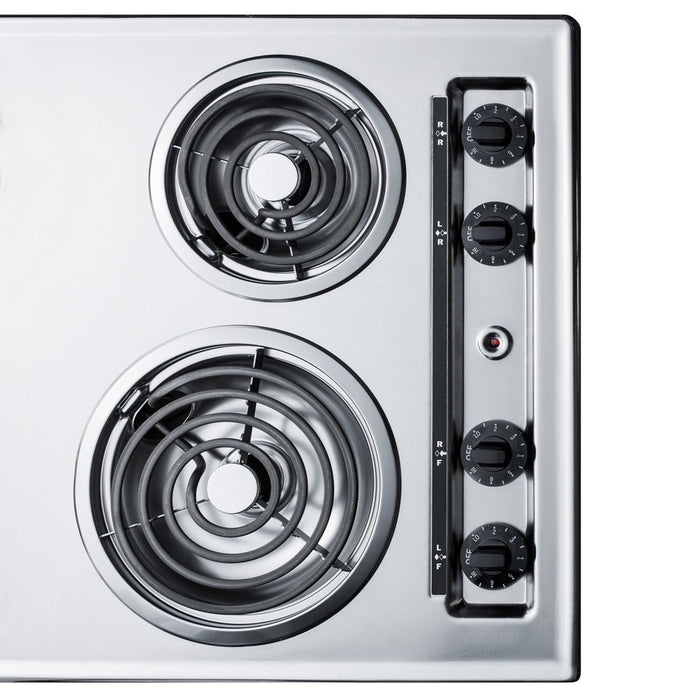

Side controls
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
220-240V operation
Professional installation required
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
