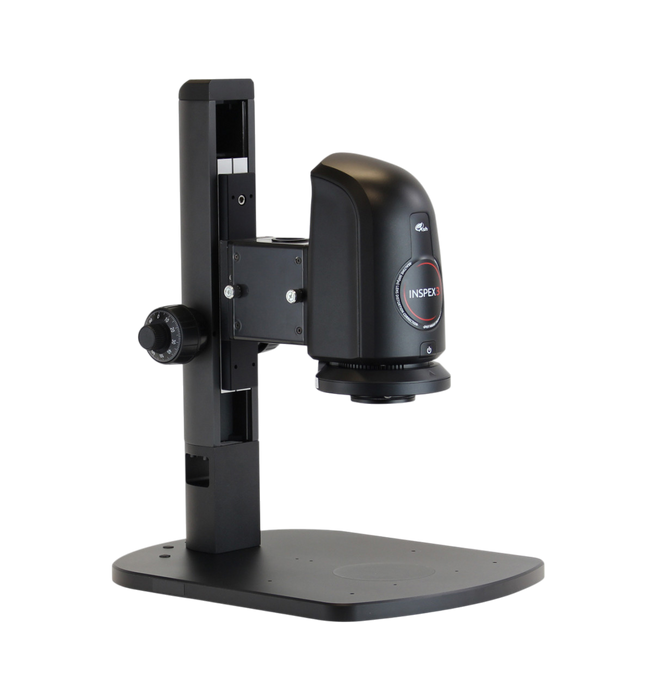

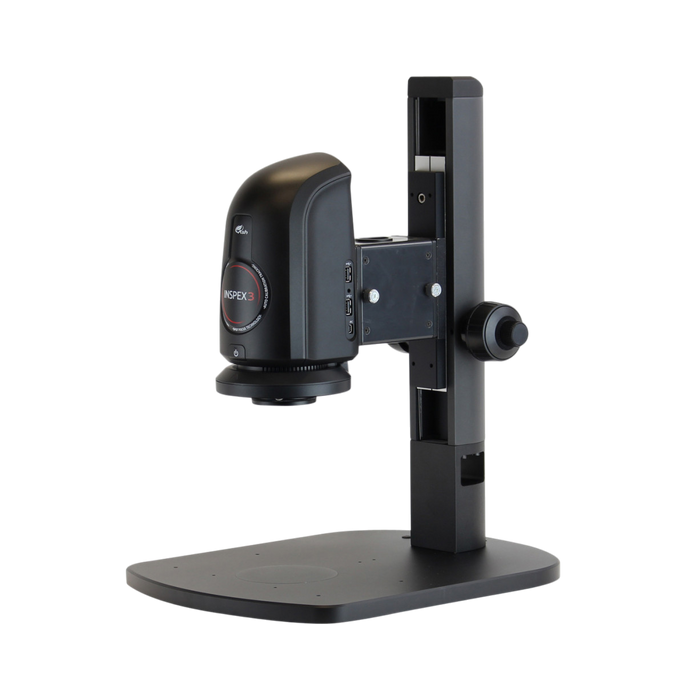

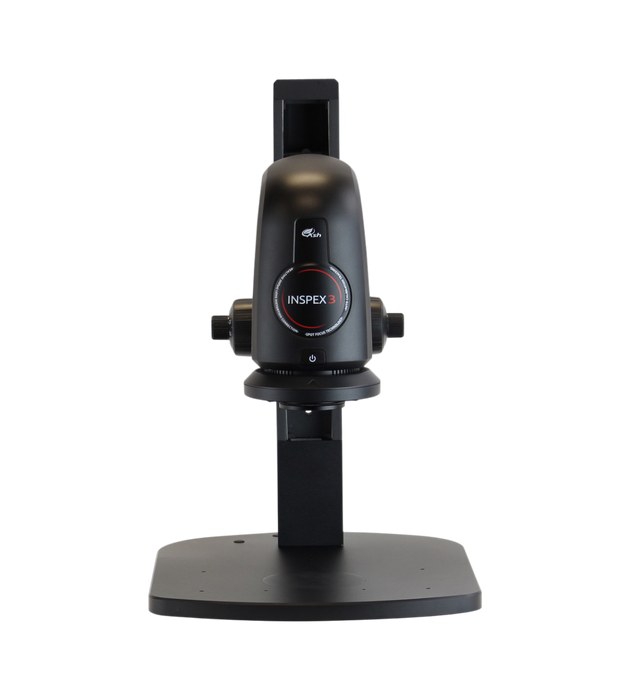

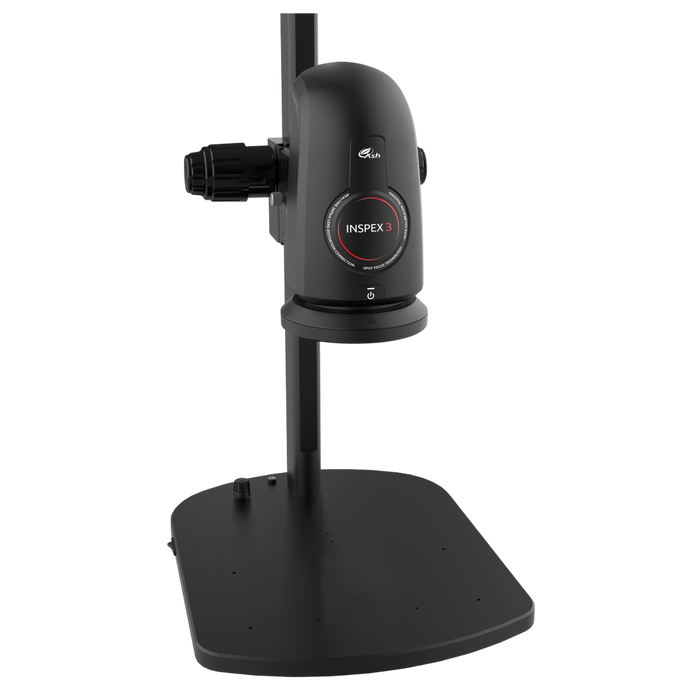

INSPEX 3 Digital Inspection Station on Track Stand

INSPEX 3 on Track Stand (Part #14793-TS) combines the advanced 1080p digital inspection capabilities of the INSPEX 3 head unit with a stable, height-adjustable illuminated track stand for repeatable bench-top inspection. This configuration is ideal for electronics manufacturing, medical device inspection, precision engineering, and quality control environments where fast setup and consistent positioning are critical.

The integrated track stand provides smooth vertical travel and rigid support, allowing operators to maintain optimal working distance while leveraging INSPEX 3’s super-fast auto-focus, real-time imaging, and measurement tools.

System Overview

• INSPEX 3 1080p digital inspection head


• Precision illuminated track stand for stable vertical adjustment


• Bench-ready configuration for rapid deployment

Key Capabilities

• 1080p Full HD imaging (1920 × 1080, 60 fps)


• 5D lens system with magnification range 2.1× – 131.6×


• Super Fast Auto-Focus™ for high-throughput inspection


• Manual Rocker Focus™ and SpotFocus™ for ROI precision


• Zero video latency for real-time inspection and rework

Camera & Imaging

• 30× HD camera module with high-speed image processing


• AshTruColour™ true color reproduction


• Improved depth of field for faster inspection


• Image stacking for fully focused composite images

Illumination

• Integrated quadrant-controlled LED ring light


• On-screen illumination intensity control


• Compatible with optional specialty lighting

Measurement & Software Tools

• AshCal™ calibration tracking across the full zoom range


• 2D line measurement, digital graticules, and overlays


• Preset inspection modes and image capture


• User access control and traceability

Connectivity & Storage

• HDMI and DVI outputs


• Four USB 2.0 ports + USB On-The-Go (PC connectivity)


• 16 GB internal image storage


• Removable USB image storage support

Included

• INSPEX 3 digital inspection head


• Illuminated track stand


• Wireless keyboard and wireless mouse


• Power supply and documentation
