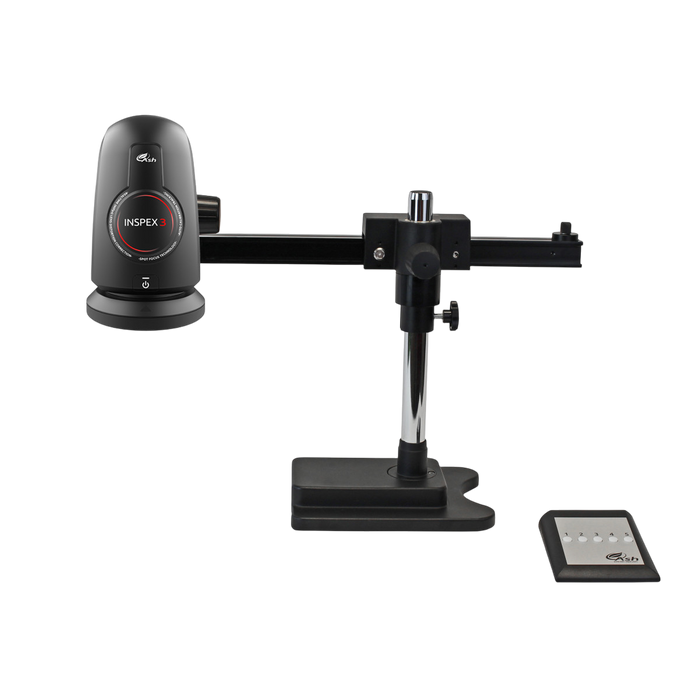

INSPEX 3 Digital Inspection Station on Gliding Arm Boom Stand 14793-GS

INSPEX 3 on Gliding Arm Boom Stand (Part #14793-GS) pairs ASH’s 1080p digital inspection
head with a smooth-travel gliding arm boom stand for extended reach, flexible positioning, and stable
inspection across larger work areas. This configuration is ideal for electronics rework, medical device
inspection, precision engineering, and QC environments where parts vary in size and operators need fast
repositioning without sacrificing image stability.

The gliding arm boom stand enables repeatable movement across the bench, helping operators bring the
inspection head to the work—rather than constantly moving the work to the microscope.

System Overview

• INSPEX 3 1080p digital inspection head


• Gliding arm boom stand for extended reach and flexible positioning


• Bench-ready configuration for large parts and multi-position inspection

Key Capabilities

• 1080p Full HD imaging (1920 × 1080, 60 fps)


• 5D lens system with magnification range 2.1× – 131.6×


• Super Fast Auto-Focus™ for high-throughput inspection


• Manual Rocker Focus™ and SpotFocus™ for ROI precision


• Zero video latency for real-time inspection and rework

Camera & Imaging

• 30× HD camera module with high-speed image processing


• AshTruColour™ true color reproduction


• Improved depth of field for faster inspection


• Image stacking for fully focused composite images

Illumination

• Integrated quadrant-controlled LED ring light


• On-screen illumination intensity control


• Compatible with optional specialty lighting

Measurement & Software Tools

• AshCal™ calibration tracking across the full zoom range


• 2D line measurement, digital graticules, and overlays


• Preset inspection modes and image capture


• User access control for traceability


• Real-Time Lens Distortion Correction (RTLDC™)

Connectivity & Storage

• HDMI and DVI video outputs


• Four USB 2.0 ports + USB On-The-Go (PC connectivity)


• Three general-purpose I/O ports + 24 V DC power input


• 16 GB internal image storage


• Removable USB image storage support

Included

• INSPEX 3 digital inspection head


• Gliding arm boom stand


• Wireless keyboard and wireless mouse


• Power supply and documentation
