EQTemp introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

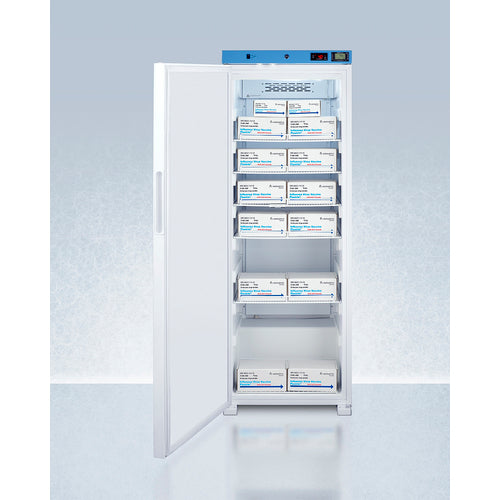

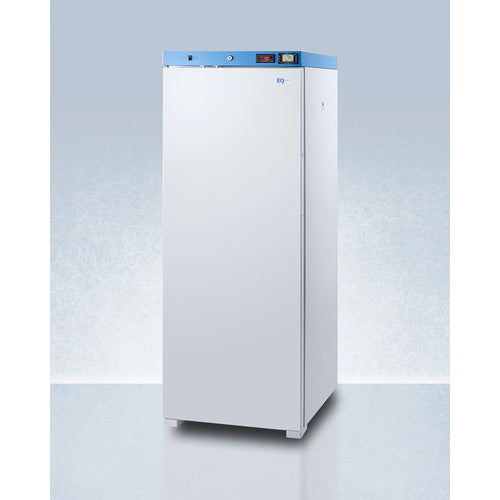

Model ACR1321WLHD is an upright 12.71 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

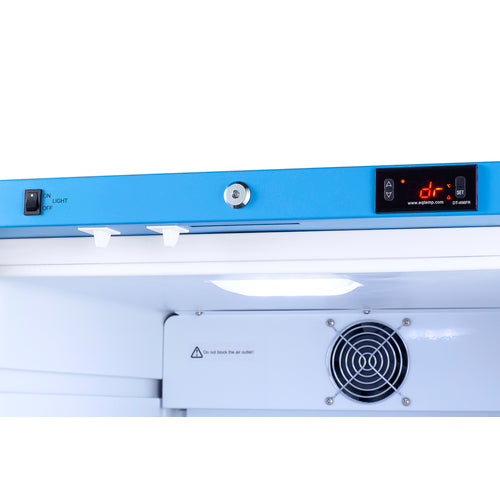

The ACR1321WLHD includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

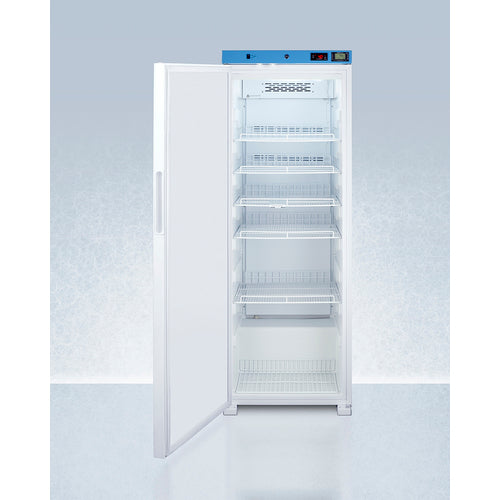

The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.
This unit ships with a left-hand door swing (for a right-hand version, see model ACR1321W). This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1321WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.
Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
Specifications
Overview
Nominal Height: 65.0" (165 cm)
Height of Cabinet: 64.88" (165 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.38" (59 cm)
Width with Door Open: 23.63" (60 cm)
Nominal Depth: 29.0" (74 cm)
Depth: 28.13" (71 cm)
Depth with door at 90°: 50.13" (127 cm)
Capacity: 12.71 cu.ft. (360 L)
Defrost Type: Automatic
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Amps: 2.0
Voltage/Frequency: 115 V AC/60 Hz
Weight: 130.0 lbs. (59 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101107578
Refrigerator Features
Door Swing: LHD
Reversible: Factory Reversible
Shelf Type: Wire
Shelf Qty: 5
Adjustable Shelves: Yes
Thermostat Type: Digital
Fan Type: Interior
Refrigerant Type: R600a
Refrigerant Amount: 2.0oz.
High Side PSI: 1.45
Low Side PSI: 0.85
Level Legs Qty: 2
Interior Light: Yes
Temperature Range: 2º to 8ºC
Sound Level: 37.6 dB
Dimensions
Interior Height: 56.5" (144 cm)
Interior Width: 20.0" (51 cm)
Interior Depth: 21.5" (55 cm)
Compressor Step Height: 9.0" (23 cm)
Compressor Step Width: 20.0" (51 cm)
Compressor Step Depth: 8.0" (20 cm)
Key Features
EQTemp Medical Refrigerator
All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities
Temperature Range: 2º to 8ºC
Preset to 5ºC as recommended for many storage applications

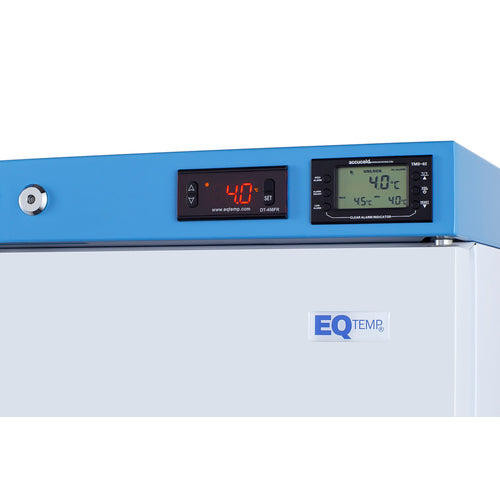

External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Large capacity
Full 12.71 cu.ft. capacity inside conveniently slim footprint
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range

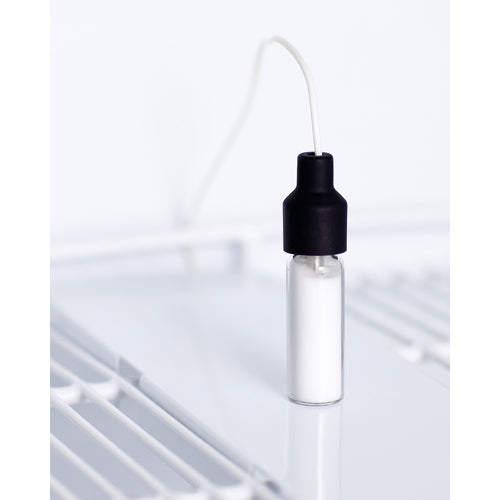

Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Fully finished white cabinet
Allows the unit to be used freestanding
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Open door alarm
Audible alarm sounds if the door is left open for more than one minute
Pocket handle
Handle is recessed into the side of the door to ensure no added depth
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing
Flat door liner
No door storage to allow for the interior to accommodate deeper trays

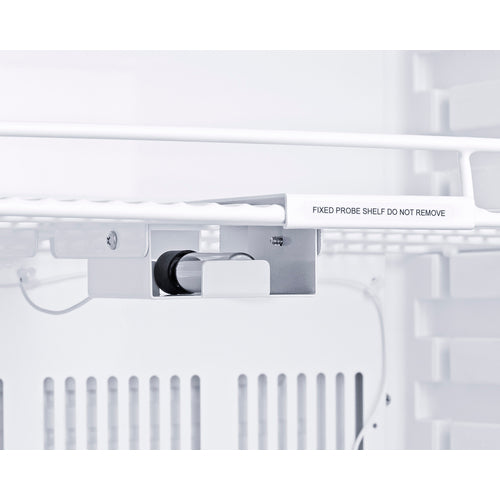

Fixed center shelf
Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Automatic defrost
Reduced user maintenance with automatic defrost
Access port
3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment
Left hand door swing
For this unit with a standard right hand door swing, see model ACR1321W
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
