Accucold offers innovative solutions to vaccine storage with the STACKMED2 stackable refrigerator-freezer combination series.

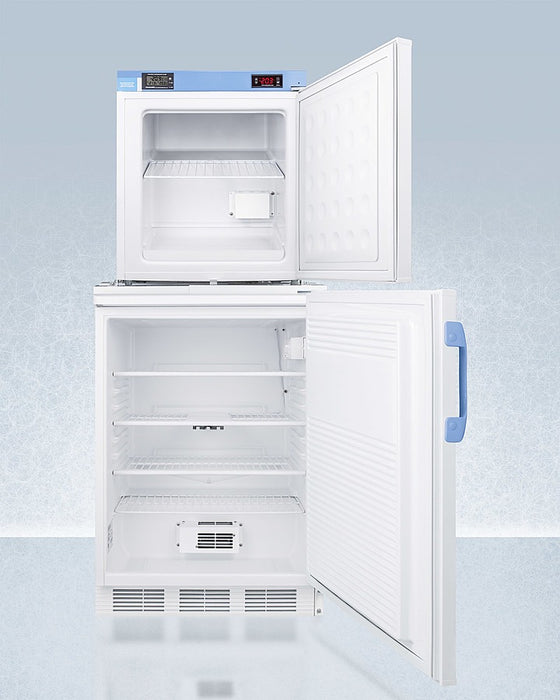

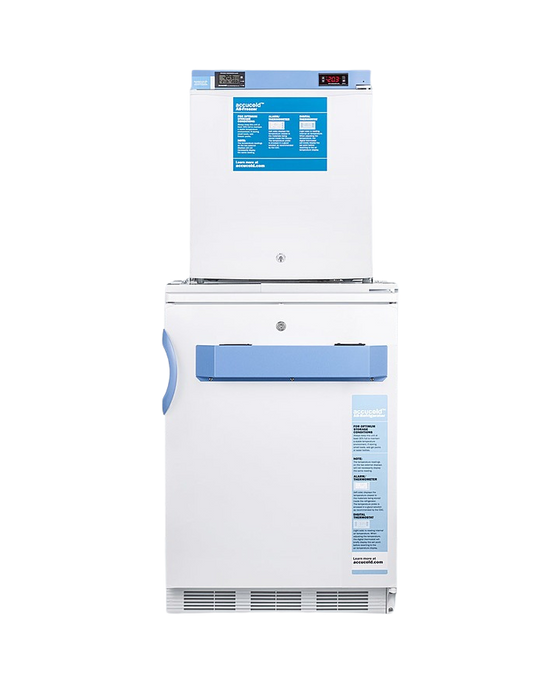

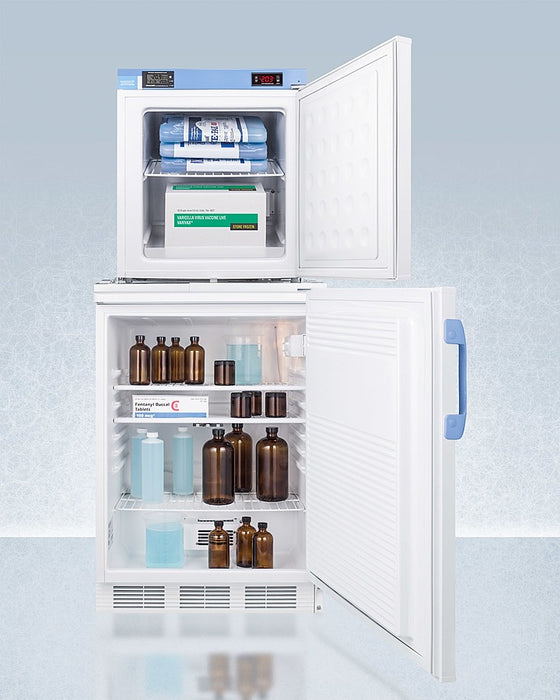

Sized just under 24" wide, the FF7LW-FS24LSTACKMED2 combines our popular FF7LWBIMED2 auto defrost all-refrigerator with the compact FS24LMED2 all-freezer in one slim footprint. Made in Europe, the FF7LWBIMED2 offers 5.5 cu.ft. of storage, with fan-forced cooling and adjustable wire shelves to ensure an even temperature distribution. The FS24LMED2 freezer utilizes static manual defrost cooling.
Both units feature front-located control panels equipped with digital thermostats and NIST calibrated thermometers with high/low temperature alarms. Calibration is done in our ISO/IEC certified laboratory. The buffered temperature probes are encased in a glycol-filled bottle and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment in the rear of both units. Additional features include front locks and hospital grade cords. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.
Specifications
Overview
Nominal Height: 56.0" (142 cm)
Height of Cabinet: 56.0" (142 cm)
Nominal Width: 24.0" (61 cm)
Width: 24.0" (61 cm)
Nominal Depth: 24.0" (61 cm)
Depth: 23.5" (60 cm)
Capacity: 6.9 cu.ft. (195 L)
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Amps: 1.3
Voltage/Frequency: 115 V AC/60 Hz
Parts & Labor Warranty: 2 Years
Compressor Warranty: 5 Years
UPC: 761101073798
Refrigerator-Freezer
Door Swing: RHD
Reversible: Factory Reversible
Adjustable Shelves: Yes
Interior Light: Yes
Refrigerator - Interior Height: 26.25" (67 cm)
Refrigerator - Interior Width: 21.0" (53 cm)
Refrigerator - Interior Depth: 18.0" (46 cm)
Refrigerator - Capacity: 5.5 cu.ft
Refrigerator - Shelf Type: Wire
Refrigerator - Shelf Qty: 3
Refrigerator - Temperature Range: 2º to 8ºC
Refrigerator - Refrigerant Type: R600a
Refrigerator - Refrigerant Amount: 0.64 oz.
Freezer - Interior Height: 14.38" (37 cm)
Freezer - Interior Width: 13.5" (34 cm)
Freezer - Interior Depth: 13.25" (34 cm)
Freezer - Capacity: 1.4 cu.ft
Freezer - Shelf Type: Wire
Freezer - Shelf Qty: 1
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 0.64 oz.
High Side PSI: 180.0
Low Side PSI: 80.0
Freezer - Temperature Range: -20º to -15ºC
Freezer - Refrigerant Type: R600a
Freezer - Refrigerant Amount: 0.8 oz.
Key Features
Meets CDC & VFC guidelines
Designed to comply with the most current guidelines for vaccine storage
Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
FF7LWBIMED2 all-refrigerator
5.5 cu.ft. auto defrost all-refrigerator with digital controls, internal fan, flat door liner, and adjustable shelving
FS24LMED2 all-freezer
Compact manual defrost all-freezer with digital thermostat and wire shelving
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
Digital thermostats
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Access ports
Rear-mounted 3/8" access port in both units allows users to install their own monitoring equipment
High/low temperature alarms
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarms include continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Buffered temperature probes
Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Hospital grade cords with 'green dot' plugs
Secure three-pronged cord for added unit safety (both units)
Factory installed locks
Both models include front locks for added security, with two keys included for each unit
Anti-tip bracket included
StackRack ships with anti-tip bracket for easy aftermarket installation
Foamed-in-place cabinets
Designed to ensure a sufficiently insulated interior
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door swing
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Both units utilize eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
