Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

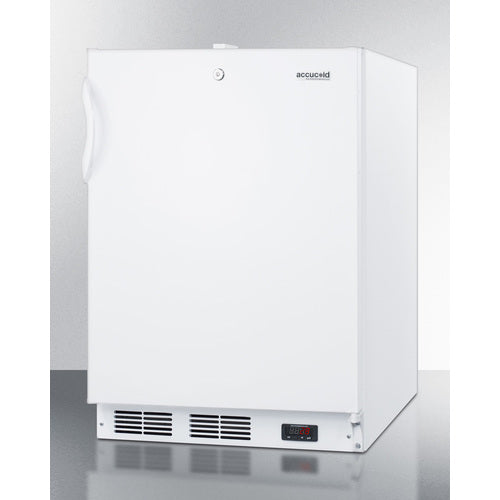

At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

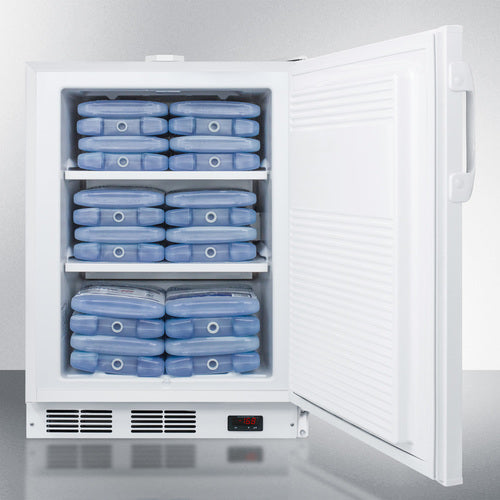

Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.
Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBIADA all-refrigerator.
Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 32.0" (81 cm)
Height to Hinge Cap: 32.25" (82 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.63" (60 cm)
Nominal Depth: 24.0" (61 cm)
Depth: 23.5" (60 cm)
Depth with Handle: 24.25" (62 cm)
Depth with door at 90°: 45.13" (115 cm)
Capacity: 3.1 cu.ft. (88 L)
Defrost Type: Frost-Free
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation: ETL-S
Amps: 1.5
Voltage/Frequency: 115 V AC / 60 Hz
Weight: 100.0 lbs. (45 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101051727
Freezer
Door Swing: RHD
Reversible: Yes
Shelf Type: Steel
Shelf Qty: 2
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R134a
Refrigerant Amount: 4.2 oz.
High Side PSI: 285.0
Low Side PSI: 70.0
Level Legs: 4
Temperature Range: -5 to 10ºF / -20 to -12ºC
Key Features
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Slim undercounter dimensions
Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
Frost-free operation
Low maintenance design ensures no frost buildup inside the unit
Digital temperature control
Electronic controls located in the exterior kickplate for precise temperature management
Factory installed lock
Keyed lock for added security, located towards the top of the door to ensure convenient access
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Removable shelves
Includes two slide-out shelves made from durable steel
Hospital grade cord
Secure three-pronged cord for added unit safety
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Matching refrigerator available
Pair with the FF7LBIADA to create a matching set
Reversible door
User-reversible door swing for added flexibility
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Fully finished white cabinet
Allows the unit to be used freestanding
Commercially approved
Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
