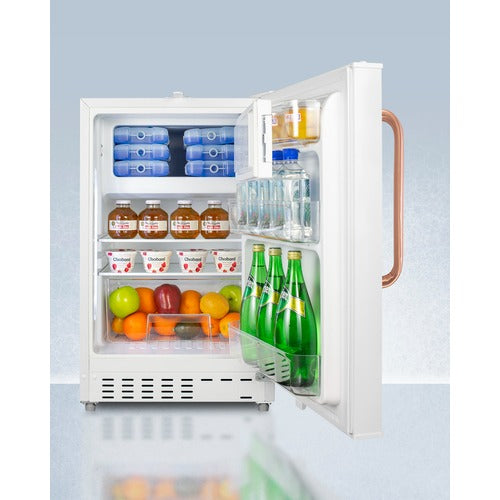

Accucold 20" Wide Built-in Refrigerator-Freezer ADA Compliant ADA302RFZTBC

Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZTBC is a refrigerator-freezer designed for use in settings complying with ADA guidelines.

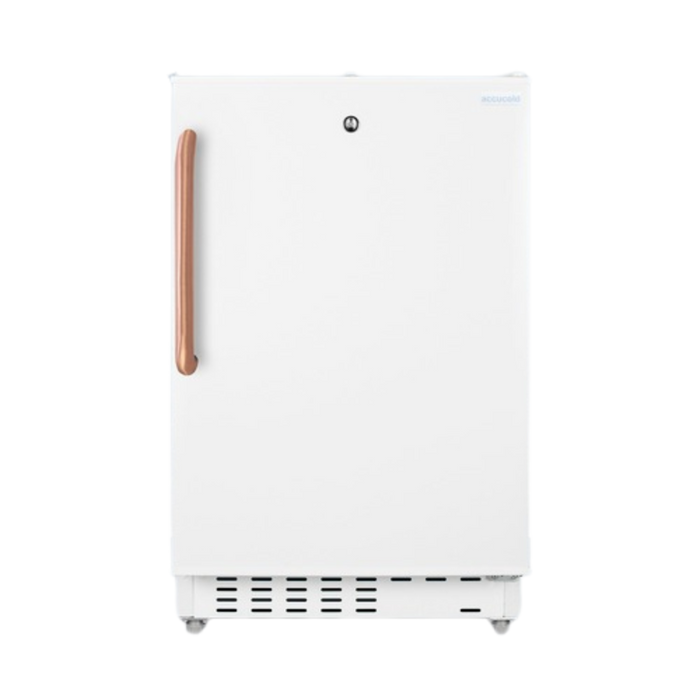

The ADA302RFZTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The door is 3" thick to ensure proper insulation and unit efficiency. This unit comes with a right angle cord to allow for added placement options without added depth.

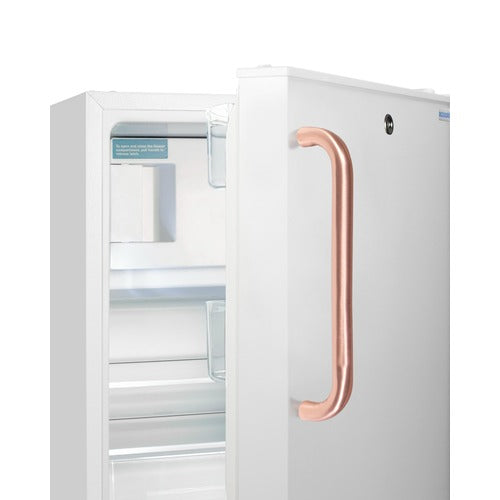

The ADA302RFZTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

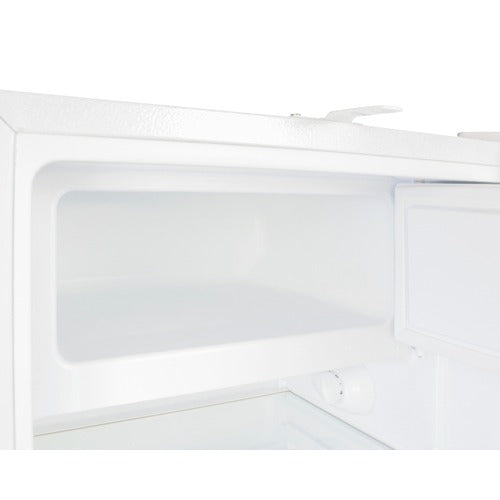

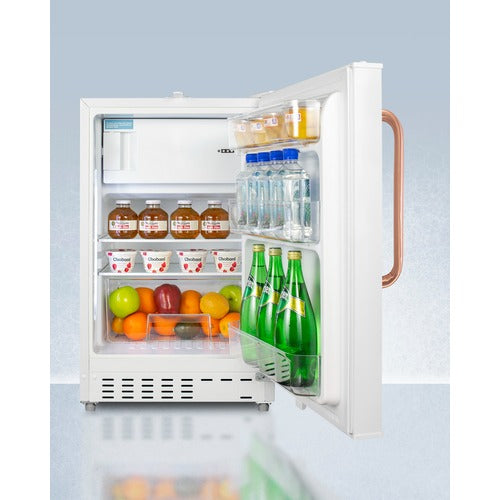

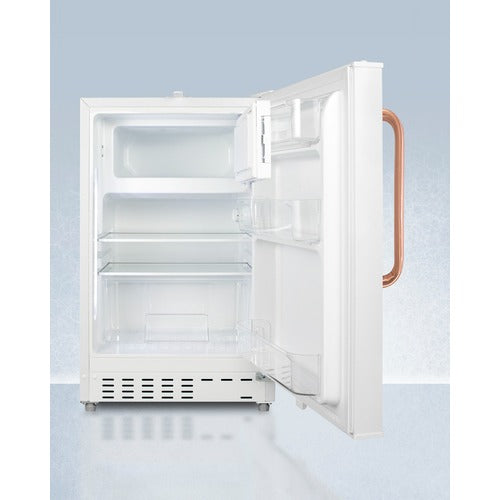

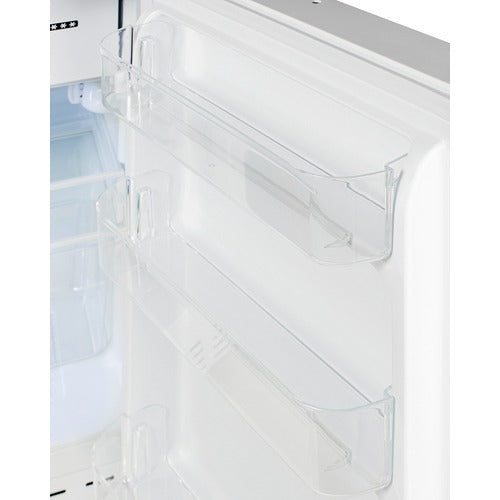

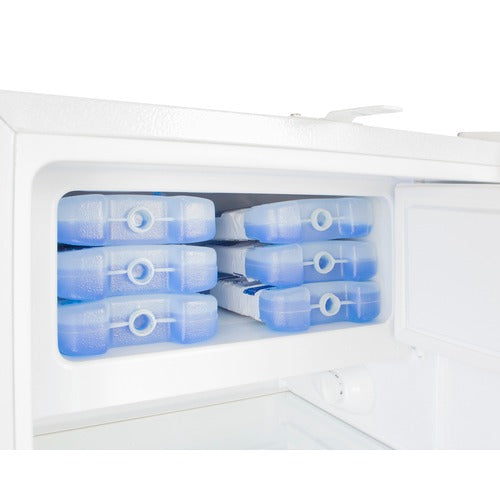

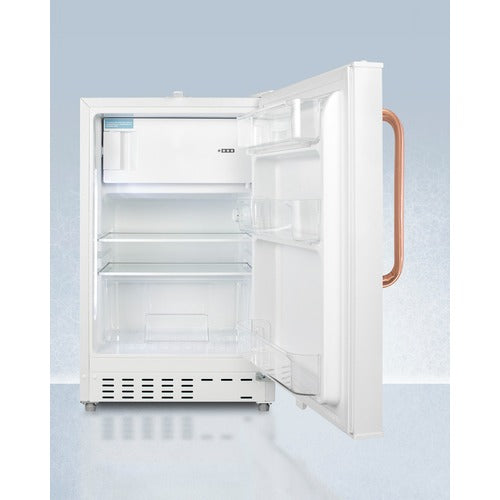

Inside, the ADA302RFZTBC features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing.

With its compact size and convenient features, the ADA302RFZTBC is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

Specifications

Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 31.75" (81 cm)
Height to Hinge Cap: 32.0" (81 cm)
Nominal Width: 20.0" (51 cm)
Width: 19.75" (50 cm)
Width with Door Open: 20.25" (51 cm)
Nominal Depth: 23.0" (58 cm)
Depth: 22.5" (57 cm)
Depth with Handle: 25.0" (64 cm)
Depth with Door at 90°: 40.25" (102 cm)
Capacity: 2.68 cu.ft. (76 L)
Defrost Type: Manual
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Energy Usage/Year: 259.0 kWh/year
Amps: 1.1
Voltage/Frequency: 115 V AC/60 Hz
Weight: 65.0 lbs. (29 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101076898

Refrigerator-Freezer Features
Door Swing: RHD
Reversible: Factory Reversible
Adjustable Shelves: Yes
Crisper Qty: 1
Crisper Finish: Transparent
Crisper Cover: Glass
Interior Light: Yes

Refrigerator Interior
Height: 17.5" (44 cm)
Width: 16.25" (41 cm)
Depth: 17.0" (43 cm)
Shelf Type: Glass
Shelf Qty: 3
Full Door Shelves: 3
Temperature Range: 35–46ºF
Refrigerant Type: R600a
Refrigerant Amount: 0.92 oz.

Freezer Interior
Height: 5.75" (15 cm)
Width: 16.25" (41 cm)
Depth: 11.25" (29 cm)

Additional Details
Thermostat Type: Dial
Refrigerant Type: R600a
Refrigerant Amount: 0.92 oz.
High Side PSI: 180.0
Low Side PSI: 80.0
Level Legs: 2

Compressor Step
Height: 6.25" (16 cm)
Width: 16.25" (41 cm)
Depth: 6.0" (15 cm)
