Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The AL650 Series includes freestanding refrigerator-freezers designed for optimum storage conditions and sized for use in settings complying with ADA guidelines.

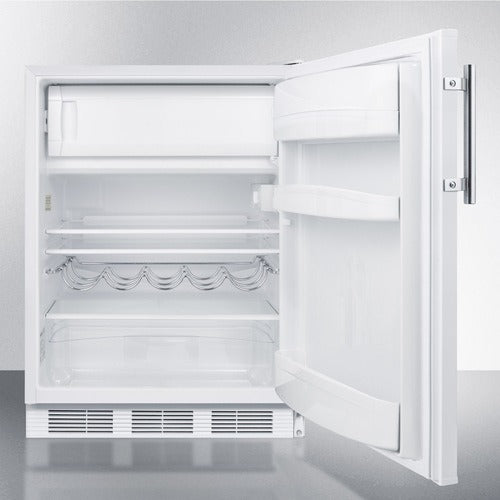

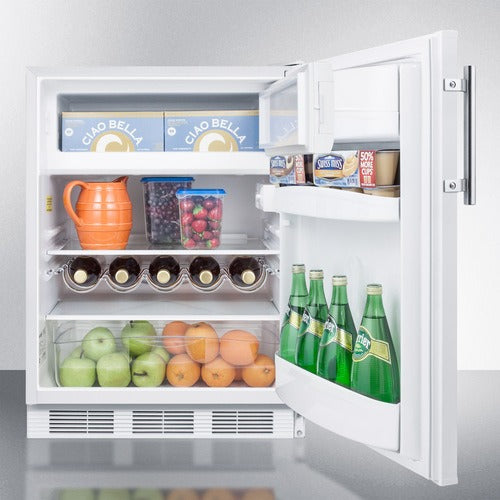

At 32" high, the AL650W is designed for freestanding use in ADA compliant facilities. The 24" footprint offers over 5 cu.ft. of storage capacity. This model features a white exterior finish and a user-reversible door swing.
Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.
The AL650W has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650 Series. For built-in undercounter applications, see the AL650WBI.
Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 32.0" (81 cm)
Height to Hinge Cap: 32.25" (82 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.63" (60 cm)
Nominal Depth: 24.0" (61 cm)
Depth: 23.5" (60 cm)
Depth with Handle: 24.25" (62 cm)
Depth with Door at 90°: 45.13" (115 cm)
Capacity: 5.1 cu.ft. (144 L)
Defrost Type: Cycle
Door Finish: White
Cabinet Finish: White
US Electrical Safety Certification: ETL
Canadian Electrical Safety Certification: ETL-C
Amperage: 1.2
Voltage/Frequency: 115 V AC / 60 Hz
Weight: 100.0 lbs. (45 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101068206
Refrigerator-Freezer Features
Door Swing: RHD (Right Hand Door)
Reversible Door: Yes
Adjustable Shelves: Yes
Refrigerator Section
Interior Height: 19.5" (50 cm)
Interior Width: 20.5" (52 cm)
Interior Depth: 17.0" (43 cm)
Shelf Type: Glass
Shelf Quantity: 3
Full Door Shelves: 3
Crisper Drawers: 1
Crisper Finish: Transparent
Crisper Cover: Glass
Freezer Section
Interior Height: 5.0" (13 cm)
Interior Width: 19.0" (48 cm)
Interior Depth: 11.5" (29 cm)
Technical Details
Thermostat Type: Dial
Refrigerant Type: R600a
Refrigerant Amount: 0.92 oz.
High Side Pressure: 180.0 PSI
Low Side Pressure: 80.0 PSI
Leveling Legs: 2
Compressor Step Height: 7.0" (18 cm)
Compressor Step Width: 20.5" (52 cm)
Compressor Step Depth: 5.0" (13 cm)
Key Features
Undercounter Refrigerator-Freezer
24" wide refrigerator with freezer compartment sized to fit under ADA compliant counters
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
ADA compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Fully finished white cabinet
Allows the unit to be used freestanding
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Reversible door
User-reversible door swing for added flexibility
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Door storage
Store large bottles right on the door for easy access
Clear crisper
Get the longest life and best taste out of produce by storing in a convenient slide drawer
Interior light
Automatically illuminates when you open the door
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
