Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs.

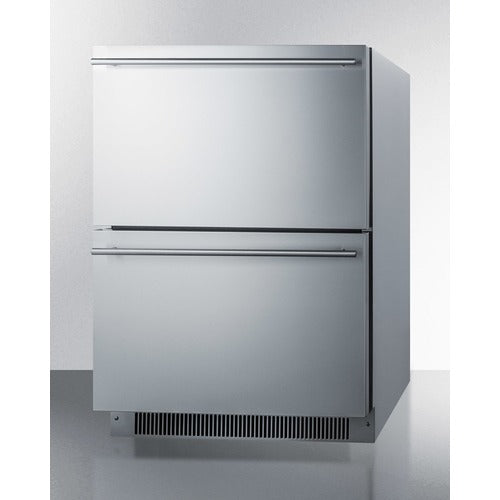

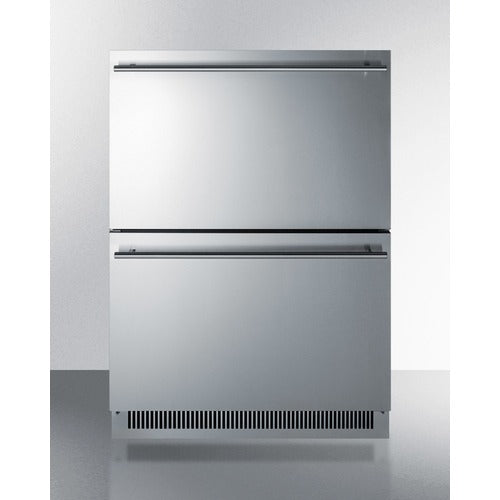

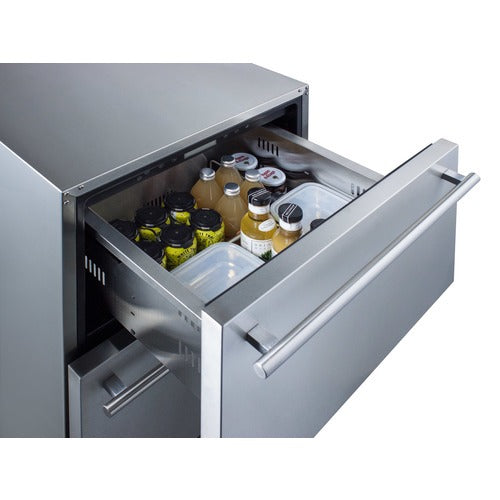

The ADRD24 is a two-drawer all-refrigerator sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/4 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look.

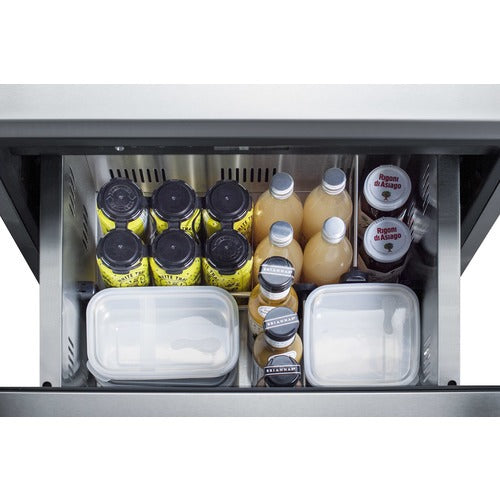

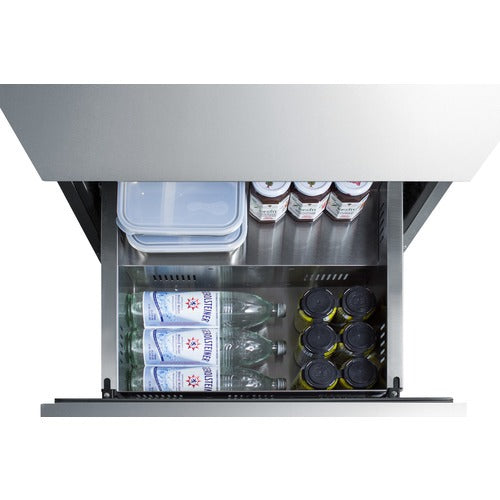

Frost-free operation ensures minimum user maintenance inside the 4.8 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer.
Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features during periods of religious observance.
The ADRD24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching frost-free freezer, see model ADFD2D24.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 32.0" (81 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.38" (59 cm)
Nominal Depth: 23.0" (58 cm)
Depth: 22.75" (58 cm)
Depth with Handle: 24.63" (63 cm)
Depth with Door at 90°: 37.88" (96 cm)
Capacity: 4.8 cu.ft. (136 L)
Defrost Type: Frost-Free
Door: Stainless Steel/Panel-Ready
Cabinet: Stainless Steel
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation Certification: ETL-S
Energy Usage/Year: 262.0 kWh/year
Amps: 0.5
Voltage/Frequency: 115 V AC / 60 Hz
Weight: 95.0 lbs. (43 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101064949
Refrigerator Features
Sabbath Mode: Yes
Door Swing: Drawer
Height Adjustable: Yes
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.09 oz.
High Side PSI: 320.0
Low Side PSI: 120.0
Leveling Legs: 4
Interior Light: Yes
Interior Drawers: Yes
Number of Interior Drawers: 2
Temperature Range: 34 to 43ºF
Sound Level: 34.3 dB
Drawer Dimensions
Top Drawer – Height: 9.63" (24 cm),
Width: 16.75" (43 cm),
Depth: 15.25" (39 cm)
Bottom Drawer – Height: 10.75" (27 cm),
Width: 16.75" (43 cm),
Depth: 15.25" (39 cm)
Compressor Step Dimensions
Height: 4.5" (11 cm)
Width: 16.75" (43 cm)
Depth: 5.5" (14 cm)
Key Features
2-Drawer Outdoor Refrigerator
24" wide all-refrigerator for built-in undercounter use in indoor or outdoor kitchens
ENERGY STAR certified
Ensures unit runs efficiently with an environmentally friendly performance
Commercially approved
ETL-S listed to NSF-7 standards for commercial use
ADA compliant
32” height allows for installation within ADA-compliant spaces

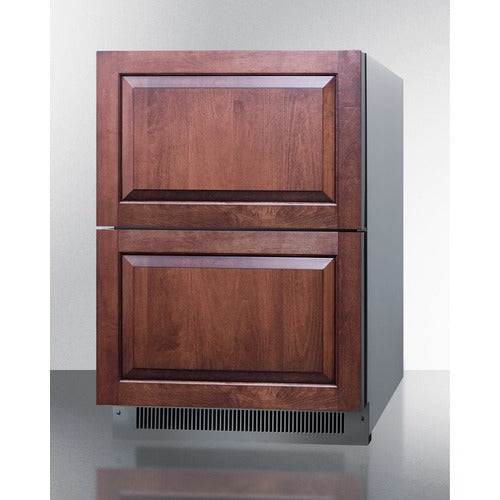

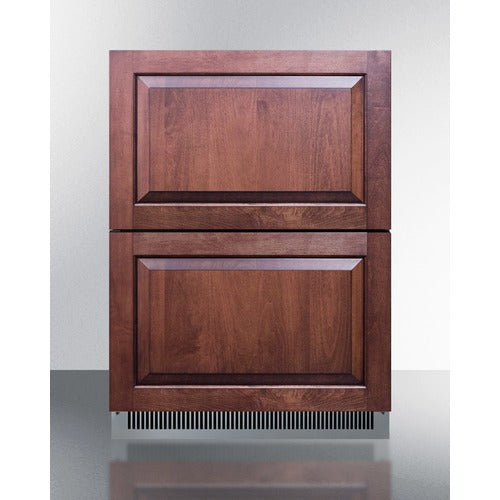

Panel-ready drawer fronts
Drawers can be customized with overlay panels sized (at 23.34" x 14.17" at 3/4" thick) to match or accent existing cabinetry
Adjustable height
Unit can be raised to 34.25", with a taller kickplate included for a seamless look
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Stainless steel construction
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements
Professional handles
Stainless steel handles add style to any setting
Frost-free
No-frost operation for minimal user maintenance
Interior lighting
Soft LED lighting makes for easy viewing of each drawer’s contents
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Digital display
Large display allows for easy readability and unit control

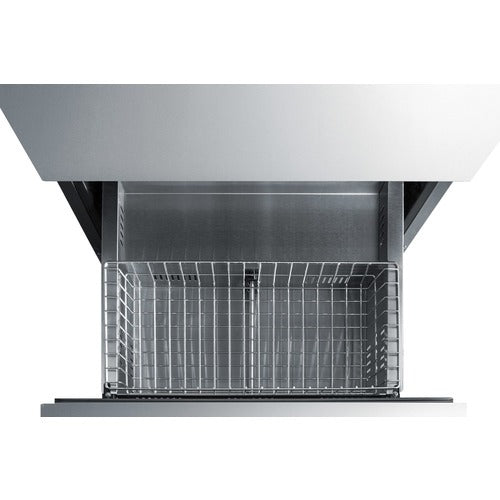

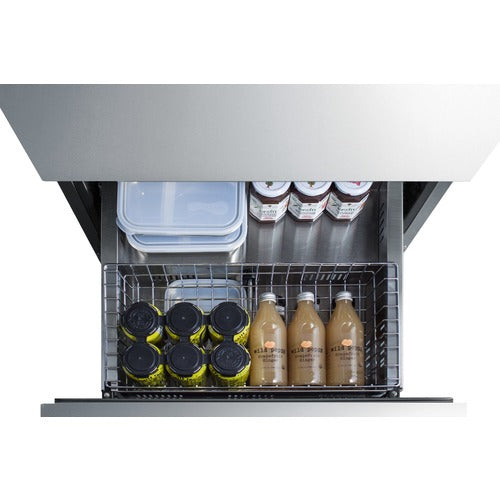

Sliding basket
Removable basket included for additional storage convenience

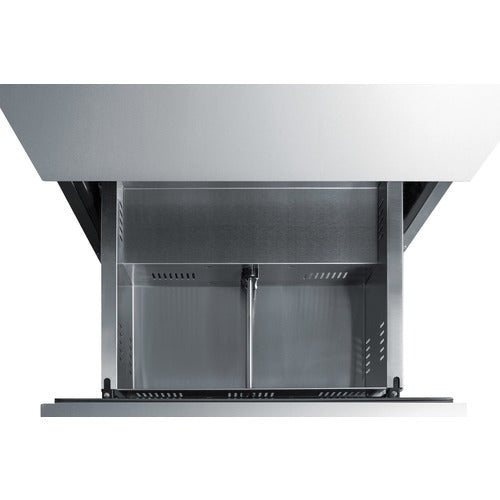

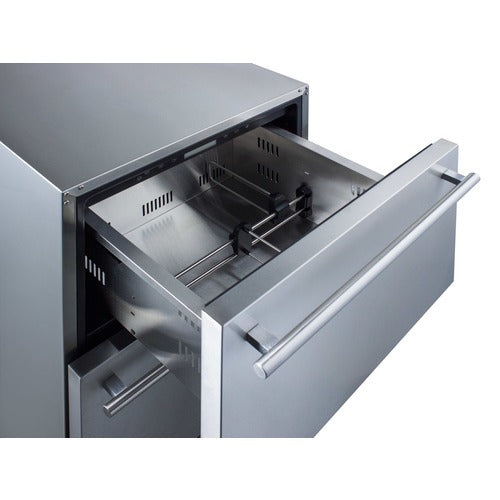

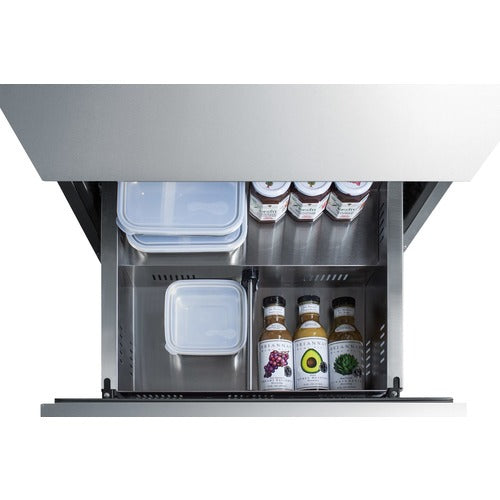

Drawer dividers
Two adjustable dividers provide flexibility when organizing the 4.8 cu.ft. interior
Removable drawers
Allows for easy cleaning and organization within the interior of the unit
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Door alarm
Audible alarm sounds if the drawers are left open for more than five minutes
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Right-angle plug
Space-saving plug allows unit to sit flush against the wall
Sealed back
Space-saving and makes for quick cleaning of the unit’s exterior
Fan-forced cooling
Provides for efficient, even cooling of the entire unit
Temperature memory
Unit will retain temperature settings after losing power
Anti-slam drawers
Soft-close glides prevent drawers from slamming shut for additional durability and safety
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
Fully finished cabinet
Allows the unit to be used freestanding
Matching freezer available
Pair with Summit's frost-free ADFD2D24 to create a matching side-by-side set
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
