Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

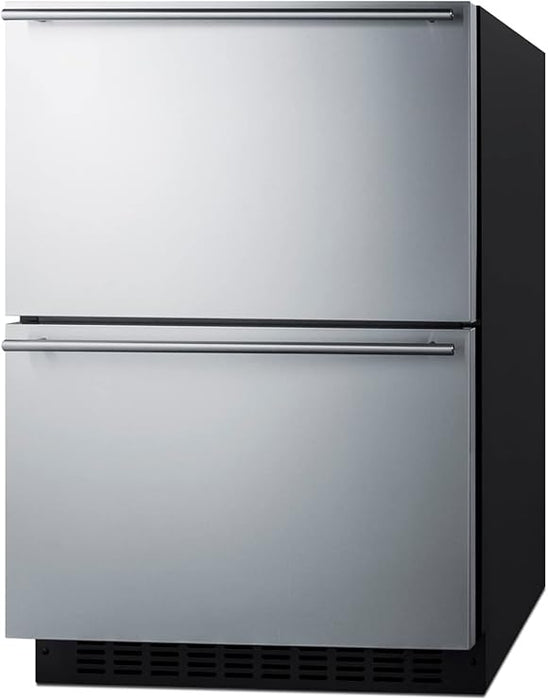

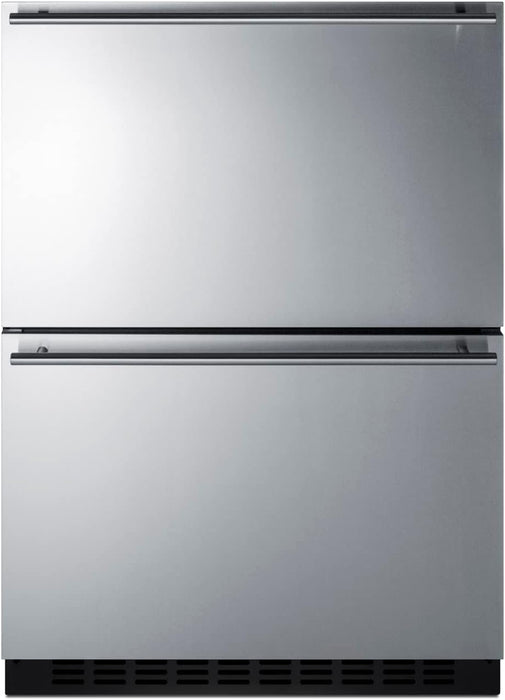

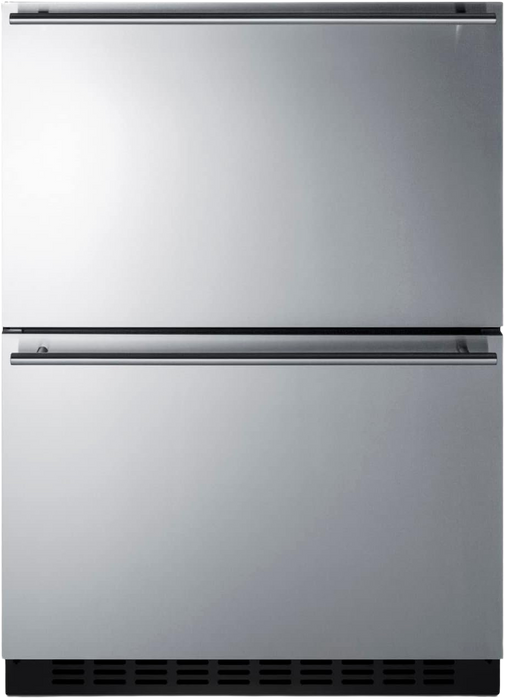

Sized at just under 24" wide and 32" high, model ADRD241PNR is a 2-drawer all-refrigerator perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces.
Inside, the ADRD241PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ADRD241PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching frost-free freezer (model ADFD243PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 31.88" (81 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.38" (59 cm)
Nominal Depth: 23.0" (58 cm)
Depth: 22.5" (57 cm)
Depth with Handle: 23.88" (61 cm)
Depth with door at 90°: 34.25" (87 cm)
Capacity: 3.7 cu.ft. (105 L)
Defrost Type: Frost-Free
Door: Panel-Ready
Cabinet: Black
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation: ETL-S
Energy Usage/Year: 185.0 kWh/year
Amps: 1.0
Voltage/Frequency: 115 V AC/60 Hz
Weight: 106.0 lbs. (48 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101088198
Refrigerator Features
Sabbath Mode: Yes
Door Swing: Drawer
Height Adjustable: Yes
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.38 oz.
High Side PSI: 270.0
Low Side PSI: 105.0
Level Legs Qty: 4
Interior Light: Yes
Temperature Range: 36 to 43ºF
Sound Level: 33 dB
Drawer Dimensions
Interior Height 1: 8.0" (20 cm)
Interior Width 1: 17.0" (43 cm)
Interior Depth 1: 14.5" (37 cm)
Interior Height 2: 8.0" (20 cm)
Interior Width 2: 17.0" (43 cm)
Interior Depth 2: 14.5" (37 cm)
Dimensions
Compressor Step Height: 4.0" (10 cm)
Compressor Step Width: 17.0" (43 cm)
Compressor Step Depth: 3.5" (9 cm)
Key Features
2-Drawer All-Refrigerator
24" wide 3.7 cu.ft. all-refrigerator with two gliding drawers

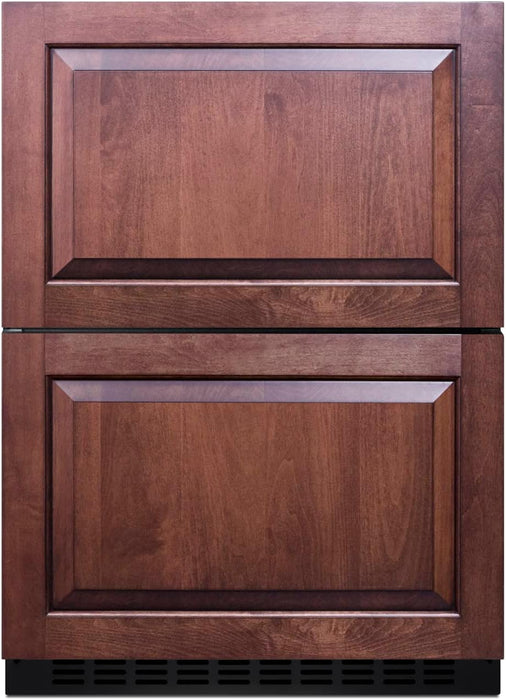

Panel-ready drawer fronts
Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
Indoor/Outdoor compatible
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Frost-free
No-frost operation for minimum user maintenance

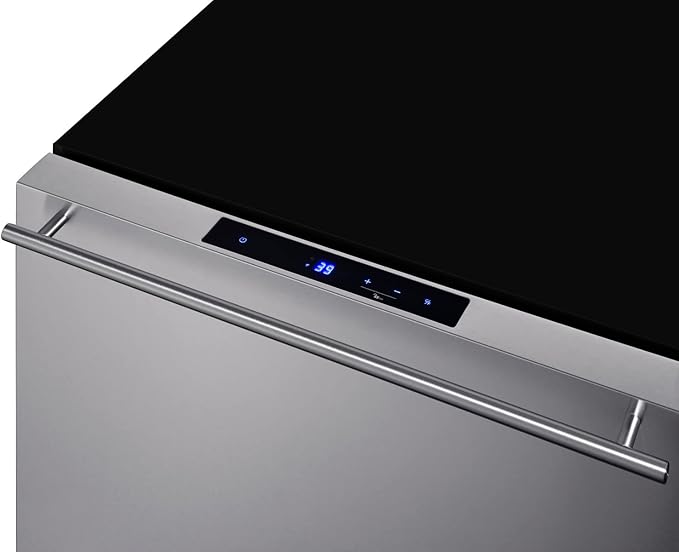

Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Interior lighting
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Fan-forced cooling
Provides for efficient, even cooling of the entire unit

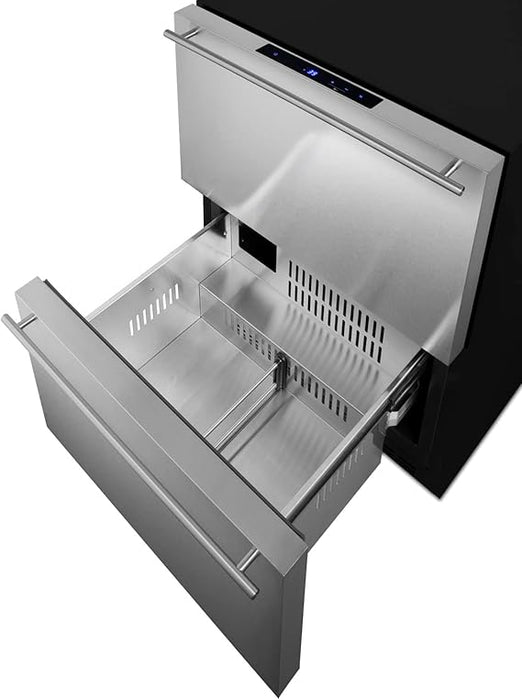

Drawer dividers
Two adjustable dividers provide flexibility when organizing the interiors

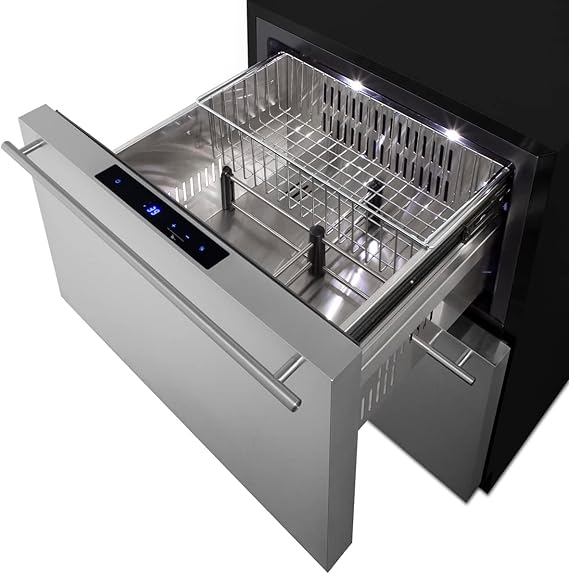

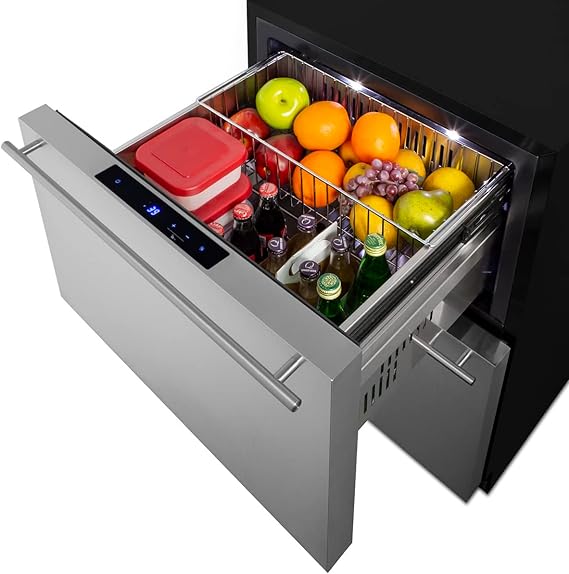

Sliding basket
Removable chrome basket included for added storage convenience
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Child lock
Disables digital controls after two minutes of activity for added safety
Temperature memory function
Unit will restore the most recent temperature settings after losing power
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability and added protection from the elements
Fully finished black exterior cabinet
Allows the unit to be used freestanding
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments
Matching freezer
Pair with the ADFD243 freezer to create a complete 2-drawer undercounter set
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
