Summit's innovative lineup features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, with advanced weatherproof construction for convenient use in any outdoor kitchen.

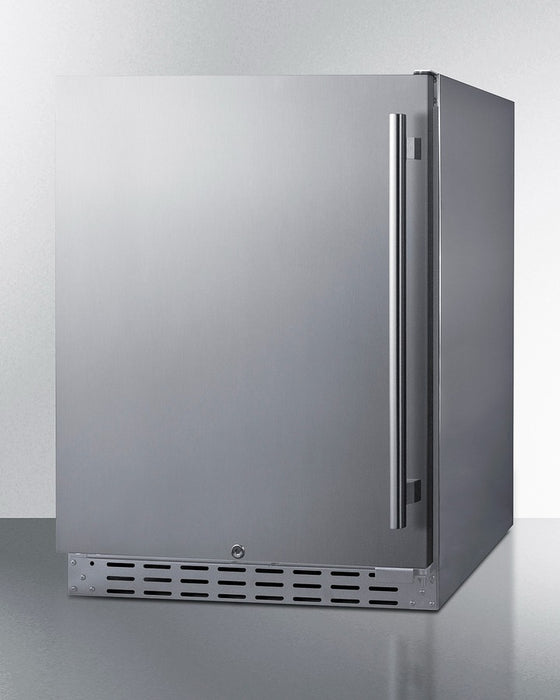

The AL55OSCSSLHD is a 24" wide outdoor refrigerator that meets residential and commercial standards and is ETL-S listed to NSF-7. Its sealed rear and complete stainless steel exterior offer true luxury designed to last outdoors. The front-breathing system allows built-in installation, while the fully finished cabinet allows freestanding use. The door is user-reversible and includes a front lock and pro-style handle. This unit comes with a left-hand door swing (for a right-hand version, see model AL55OSCSS).
A temperature alarm offers added security should the temperature exceed the setpoint, and the optional Sabbath Mode can disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures it is evenly cooled.

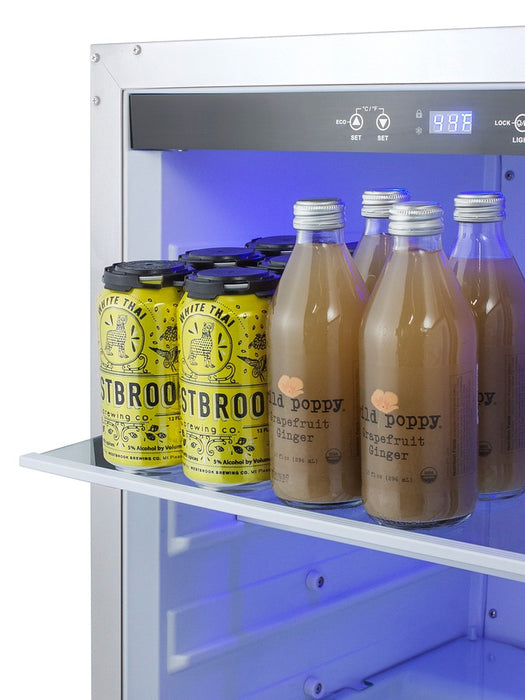

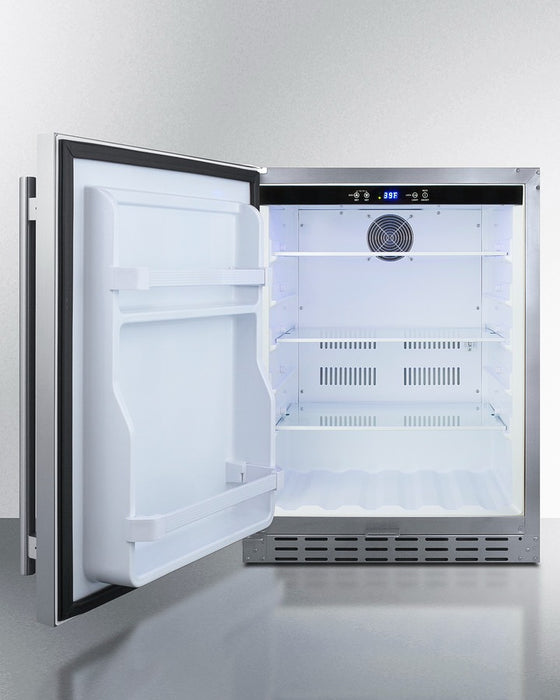

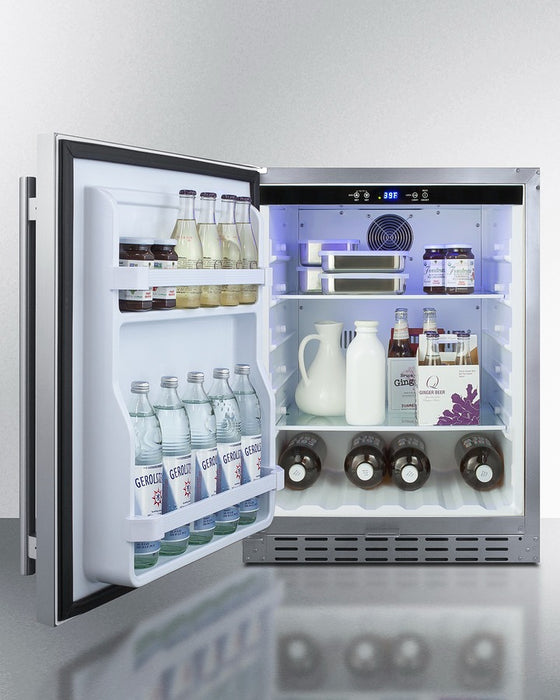

Inside, the AL55OSCSSLHD has a digital control panel that allows you to manage the unit's temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two-door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.
With its advanced user features and versatile design, the AL55OSCSSLHD is an excellent addition to any ADA-compliant outdoor setting looking for a refrigerator with a modern, elegant look.
Specifications

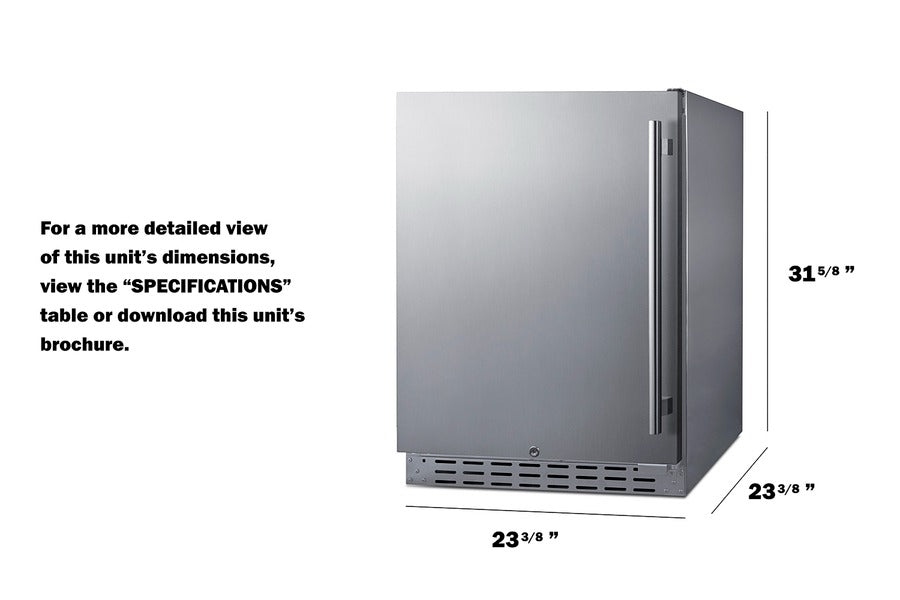

Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 31.63" (80 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.5" (60 cm)
Nominal Depth: 24.0" (61 cm)
Depth: 23.38" (59 cm)
Depth with Handle: 25.38" (64 cm)
Depth with door at 90°: 45.0" (114 cm)
Capacity: 4.2 cu.ft. (119 L)
Defrost Type: Automatic
Door: Stainless Steel
Cabinet: Stainless Steel
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation: ETL-S
Energy Usage/Year: 250.0kWh/year
Amps: 1.0
Voltage/Frequency: 115 V AC/60 Hz
Weight: 95.0 lbs. (43 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101145075
Refrigerator Features
Sabbath Mode: Yes
Door Swing: LHD
Reversible: No
Shelf Type: Glass
Shelf Qty: 3
Full Door Shelf Qty: 2
Adjustable Shelves: Yes
Thermostat Type: Digital
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.23oz.
High Side PSI: 150.0
Low Side PSI: 50.0
Interior Light: Yes
Temperature Range: 36 to 46ºF
Sound Level: 33.2 dB
Dimensions
Interior Height: 23.5" (60 cm)
Interior Width: 19.0" (48 cm)
Interior Depth: 16.0" (41 cm)
Compressor Step Height: 5.5" (14 cm)
Compressor Step Width: 19.0" (48 cm)
Compressor Step Depth: 5.0" (13 cm)
Key Features
24" Wide Outdoor All-Refrigerator
Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height
ADA-compliant
32” height allows for installation within ADA-compliant spaces
Commercially approved
ETL-S listed to NSF-7 commercial standards
Weatherproof design
Durable construction for safe installation in outdoor kitchens
Built-In capable
Front-breathing design allows the unit to be built-in under counters

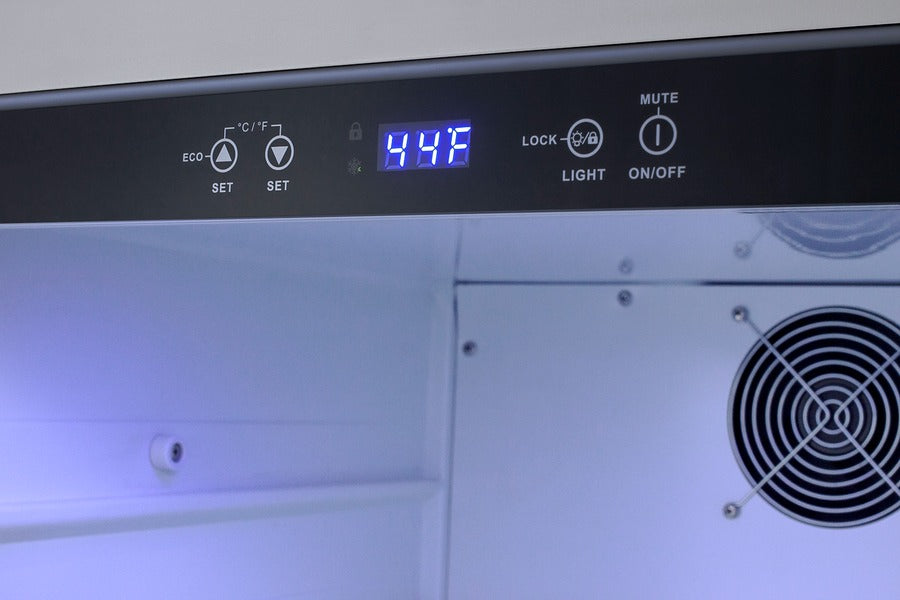

Digital control panel
Makes for easy temperature reading/management with electronic controls inside
Factory installed lock
Keyed lock for secure interior, with two keys included
Stainless steel exterior
Durable construction with a stylish look
White interior
Classic interior allows for easy cleaning and viewing of products
Adjustable glass shelving
Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Brake shelving system
Provides added safety when loading and unloading the unit's 3 shelves
Slotted floor
Allows for easy storage of bottles
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Interior light
Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

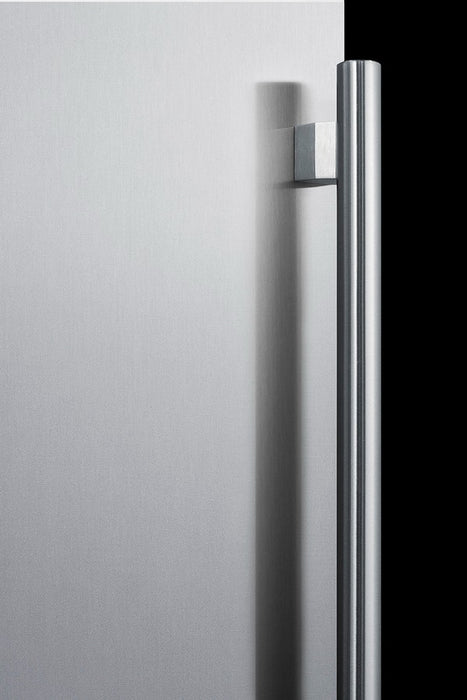

Professional handle
Stainless steel handle adds style to any setting
Temperature alarm
Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Integrated hinge
Flat stainless steel hinge ensures no added height is needed when installing under a counter
Left-hand door swing
This unit comes with a left-hand door swing. For a right-hand door swing, see the AL55OSCSS
Quiet operation
Runs under 34 dB for a quiet performance that won't interrupt your conversation
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
