Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

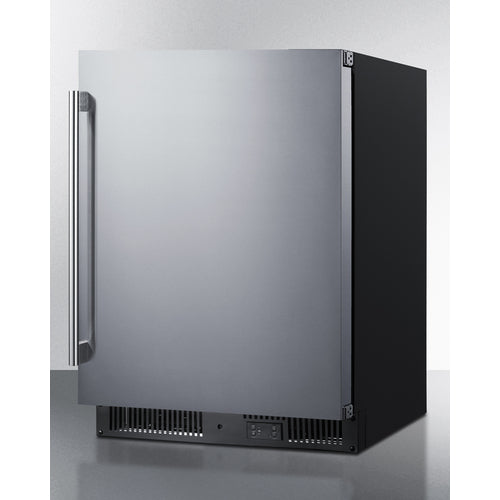

Model ALFZ53 is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and user-reversible stainless steel door with a pro style handle. A factory-installed lock offers added security with two keys included. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings.

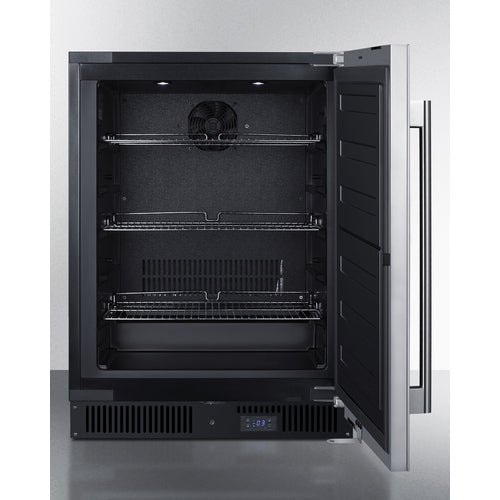

Inside, the ALFZ53 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.
The ALFZ53 freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
Specifications
Overview
Nominal Height: 32.0" (81 cm)
Height of Cabinet: 32.0" (81 cm)
Nominal Width: 24.0" (61 cm)
Width: 23.63" (60 cm)
Nominal Depth: 23.0" (58 cm)
Depth: 22.63" (57 cm)
Depth with Handle: 24.63" (63 cm)
Depth with door at 90°: 45.0" (114 cm)
Capacity: 3.67 cu.ft. (104 L)
Defrost Type: Frost-Free
Door: Stainless Steel
Cabinet: Black
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Sanitation: ETL-S
Energy Usage/Year: 345.0kWh/year
Amps: 1.5
Voltage/Frequency: 115 V AC/60 Hz
Weight: 82.0 lbs. (37 kg)
Parts & Labor Warranty: 1 Year
Compressor Warranty: 5 Years
UPC: 761101075464
Freezer
Door Swing: RHD
Reversible: Yes
Interior Height: 23.5" (60 cm)
Interior Width: 18.75" (48 cm)
Interior Depth: 15.5" (39 cm)
Shelf Type: Chrome
Shelf Qty: 3
Adjustable Shelves: Yes
Thermostat Type: Digital
Interior Light: Yes
Fan Type: Interior and Exterior
Refrigerant Type: R600a
Refrigerant Amount: 1.31 oz.
High Side PSI: 270.0
Low Side PSI: 105.0
Level Legs: 4
Compressor Step Height: 3.75" (10 cm)
Compressor Step Width: 18.75" (48 cm)
Compressor Step Depth: 4.5" (11 cm)
Temperature Range: -11°F to 11°F
Sabbath Mode: Yes
Sound Level: 33.7 dB
AVAILABLE UPGRADES
Exterior Options
Latch – Factory-installed door latch requires manual release to open unit
LHD – Left hand door swing
Key Features
Undercounter All-Freezer
24" wide frost-free freezer sized to fit under lower ADA compliant counters
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets
Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Stainless steel door
Durable construction with a professional look
Digital thermostat
Electronic controls offer easy and intuitive temperature management

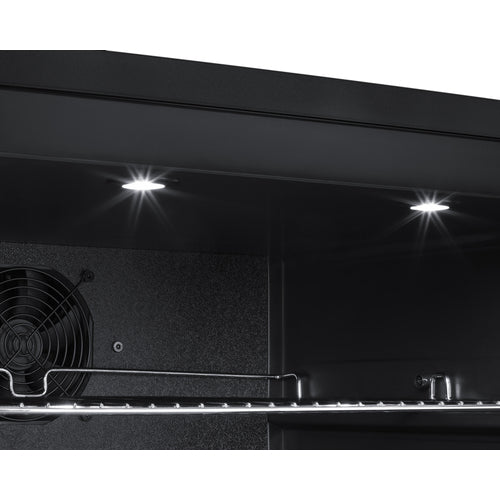

Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Reversible door
User-reversible door swing for added flexibility
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Professional handle
Attractive chrome handle adds a touch of modern style
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space-saving design with no exposed coils for easier cleanability
Commercially approved
ETL-S listed to NSF-7 commercial standards
Fully finished cabinet
Allows the freezer to be used as a freestanding model
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
