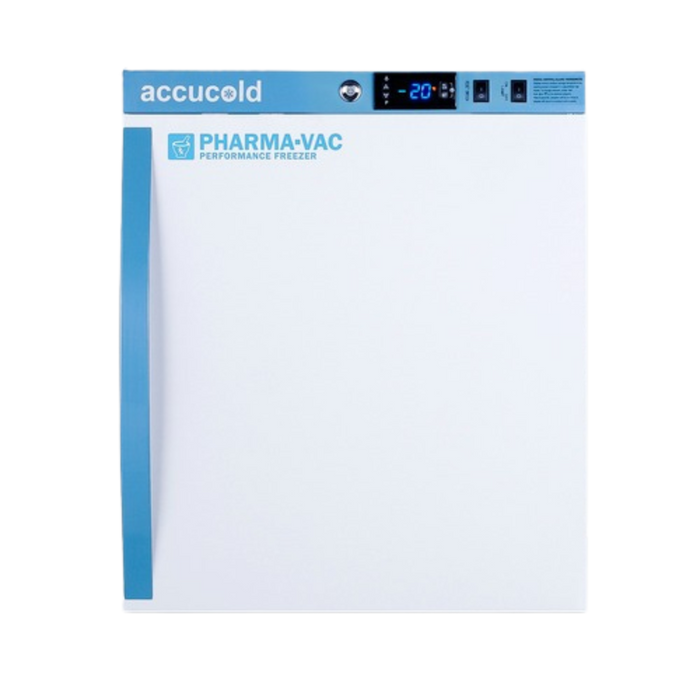

Accucold 1.4 Cu.Ft. Vaccine Freezer AFZ1PV

Accucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines.

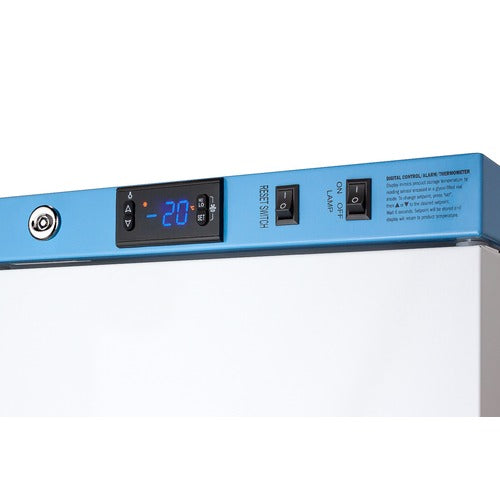

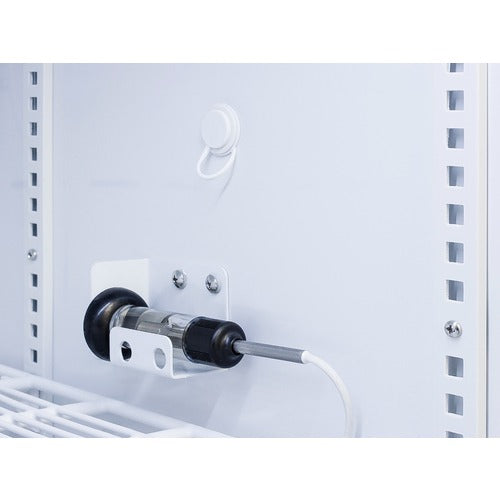

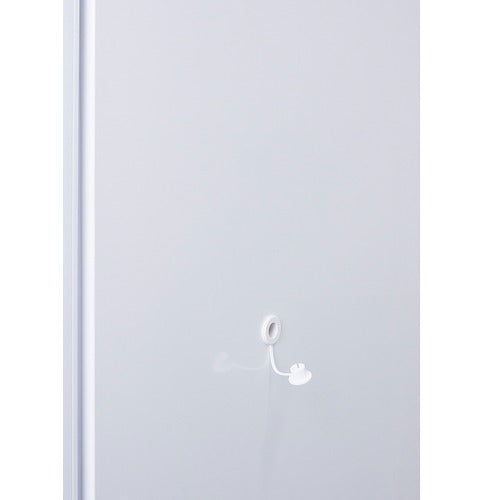

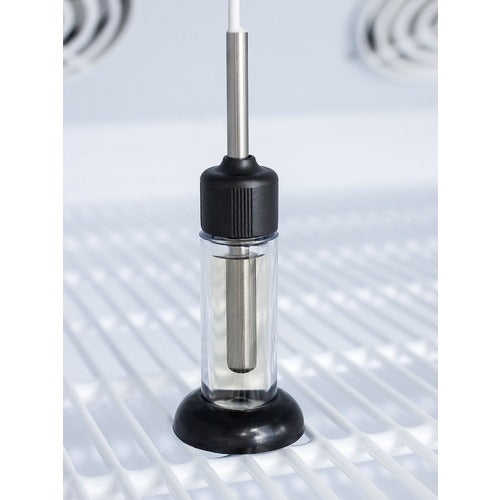

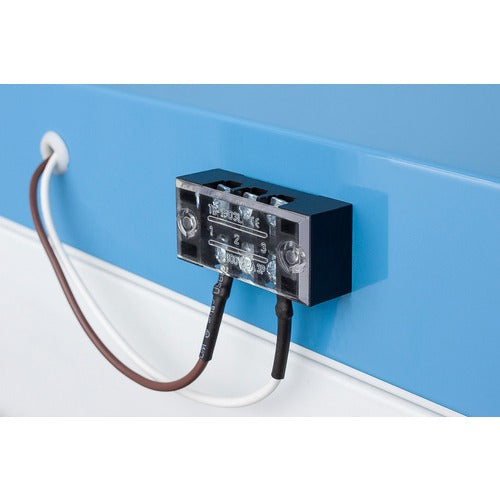

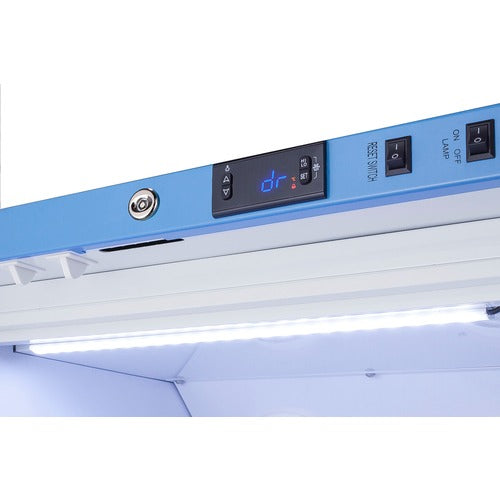

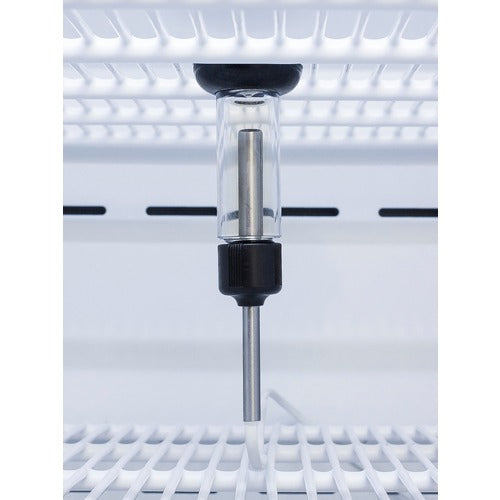

The AFZ1PV is a 1.4 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

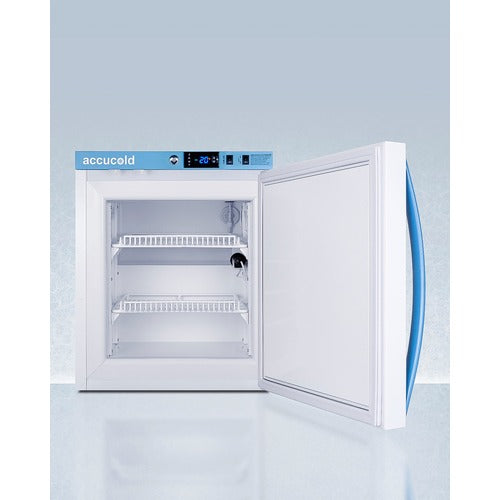

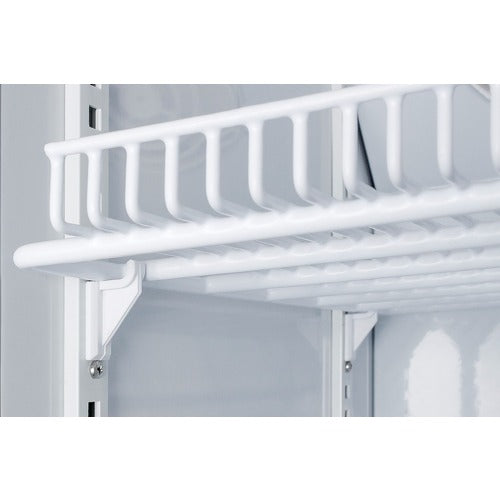

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

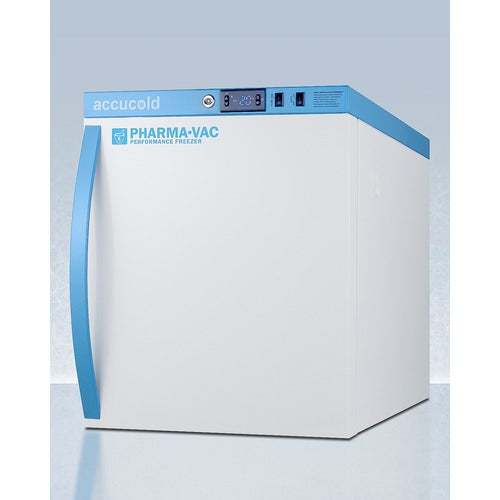

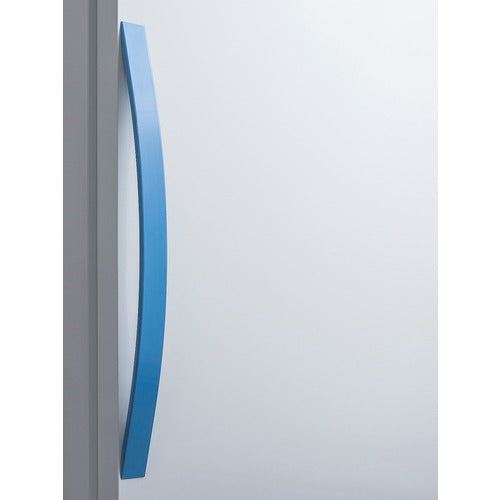

The AFZ1PV comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Specifications

Overview
Nominal Height: 23.0" (58 cm)
Height of Cabinet: 22.25" (57 cm)
Nominal Width: 19.0" (48 cm)
Width: 18.5" (47 cm)
Width with Door Open: 18.88" (48 cm)
Nominal Depth: 24.0" (61 cm)
Depth: 23.25" (59 cm)
Depth with Handle: 24.75" (63 cm)
Depth with door at 90°: 42.5" (108 cm)
Capacity: 1.4 cu.ft. (40 L)
Defrost Type: Manual
Door: White
Cabinet: White
US Electrical Safety: ETL
Canadian Electrical Safety: ETL-C
Amps: 1.3
Voltage/Frequency: 115 V AC/60 Hz
Weight: 73.0 lbs. (33 kg)
Parts & Labor Warranty: 2 Years
Compressor Warranty: 5 Years
UPC: 761101106632

Freezer
Door Swing: RHD
Reversible: Yes
Interior Height: 16.5" (42 cm)
Interior Width: 15.25" (39 cm)
Interior Depth: 15.75" (40 cm)
Shelf Type: Wire
Shelf Qty: 2
Adjustable Shelves: Yes
Thermostat Type: Digital
Interior Light: Yes
Refrigerant Type: R290
Refrigerant Amount: 0.85 oz.
High Side PSI: 280.0
Low Side PSI: 130.0
Compressor Step Height: 8.25" (21 cm)
Compressor Step Width: 15.25" (39 cm)
Compressor Step Depth: 4.25" (11 cm)
Temperature Range: -30 to -10ºC
