Excelitas X-Cite mini+ LED Light Source for Fluorescence Microscopy

SKU 010-00479R
Original price $5,860.00 - Original price $5,860.00
Original price
$5,860.00 - $5,860.00
Current price $5,860.00
Excitation Wavelength: XTMS (365nm)
In stock
In stock
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Delivery Time

In-stock items will ship same day if order is placed by 12 pm EST. Tracking will be provided once the item leaves our warehouse

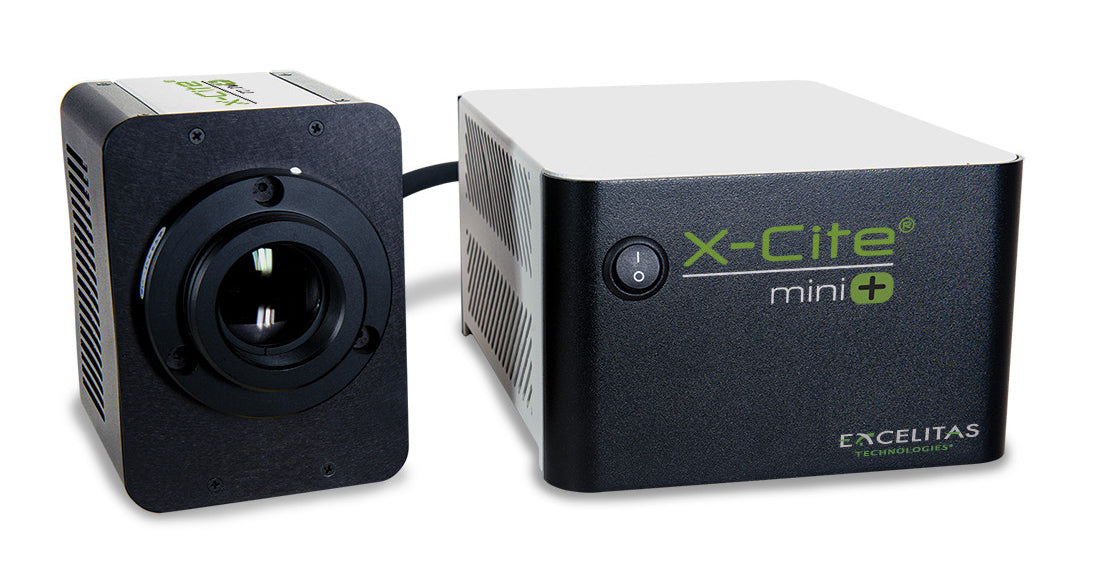

Excelitas X-Cite mini+ LED Light Source for Fluorescence Microscopy

The X-Cite mini+® is the new go-to white-light LED light source for fluorescence imaging applications. High-power performance, compact size and economically priced, the X-Cite mini+ is the perfect choice for routine fluorescence imaging. Designed with the latest in LED technology, the mini+ provides higher power to the sample plane than any of our previous direct-coupled systems. Offering two models with a choice of UV wavelengths (365nm or 385nm), labs have the flexibility to choose the one that works with their preferred or existing DAPI filter sets.

The X-Cite mini+ also comes with built-in controls and includes intuitive fingertip control with speedDIAL, hands-free operation with a foot pedal, and USB and TTL inputs for automated applications. X-Cite mini+ has a 20,000 hour warranty; no lamps to change, no mercury disposal fees and no light guides to replace. With energy-efficient LEDs and the advantage of instant ON/OFF to minimize power consumption, the X-Cite mini+ fits into any research lab’s “go-green” strategy.

Features & Benefits:

LED Technology: Efficiency, stability, instant ON/OFF, long lifetime, mercury-free
White Light Excitation: Excitation of commonly used fluorophores such as DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, and Cy5
Direct Coupled: High power excitation
Multiple Control Options: Simple operation through USB, TTL or speedDIAL
Small Footprint: Minimal space requirement; less bench-top real estate used
Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
X-Cite Coupling Optics: Efficient optical output and uniformity with highest performing coupling optics

  • In-Stock
  • Free Shipping in Continental US
  • Wavelength Range: Model: XTML: 380-700 nm
  • External Power Supply: Universal input 100-240 VAC, 50/60 Hz
  • Current: 2.4-1.2 A
  • LED ON/OFF Response Times: 100µs TTL / 1 ms USB
  • Control Options: ON/OFF - TTL compatible, speedDIAL, RS-232 commands (SDK available), USB

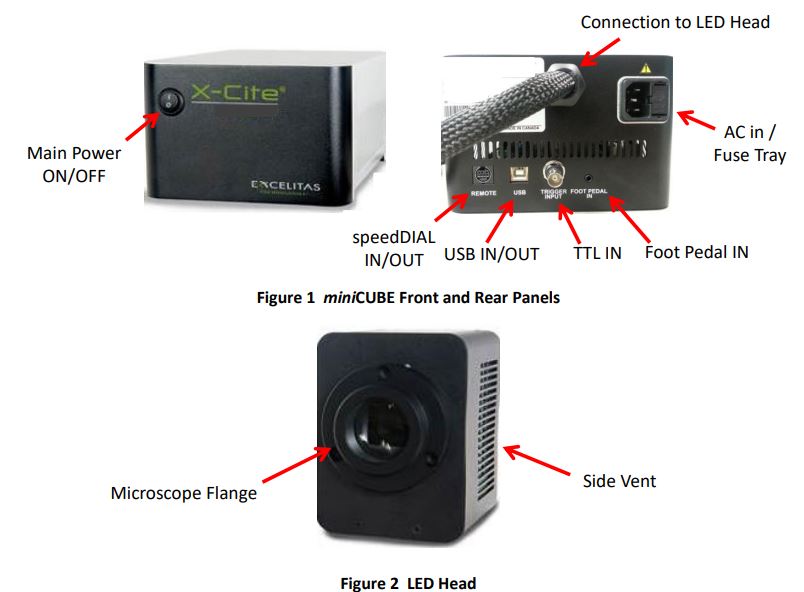

  • I/O Connections: BNC input, USB (B-type), 3.5 mm stereo plug
  • Head Dimensions: 100 mm x 135 mm x 110 mm (W x H x D)
  • Controller Dimensions: 180 mm x 110 mm x 230 mm (W x H x D)
  • speedDIAL Dimensions: 80 mm x 59 mm x 112 mm (W x H x D)
  • Weight: 3.4 kg (7.5 lb)
  • Certifications: RoHS, CE
  • Warranty: LEDs – 20,000 hours; All other X-Cite mini+ components - 1 year, parts and labor

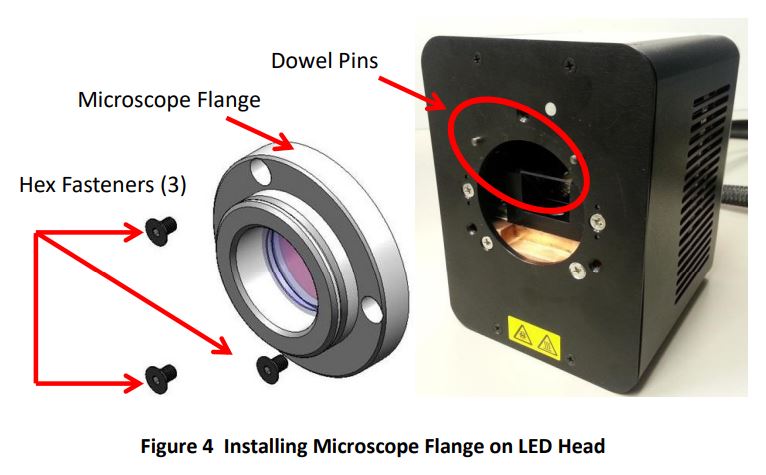

  • System includes: X-Cite mini+ Head, miniCube, speedDIAL, microscope flange, accessory kit
Filter Recommendations:
Fluorophore Filter Type Semrock Filter Chroma Filter
DAPI (with XTMS, 365nm) Single LED-DAPI-B 49000
DAPI (with XTML, 385nm) Single LED-DAPI-B 49028
CFP Single LED-CFP-A 49001
CFP/YFP FRET FRET multiple set FRET CFP/YFP-C 89002
FITC or GFP Single LED-FITC-A 49002
YFP Single LED-YFP-A 49003
TRITC Single LED-TRITC-A 49004
mCherry Single LED-mCherry-A 49008
Cy5 Single LED-Cy5-A 49006
Fluorophore Wavelength (nm)
DAPI 365/385
CFP 435
YFP 510
TRITC/Cy3/RFP/mCherry 560
MitoTracker® Red CMXROS 580
Cy5 640
Control Options:
Control Options

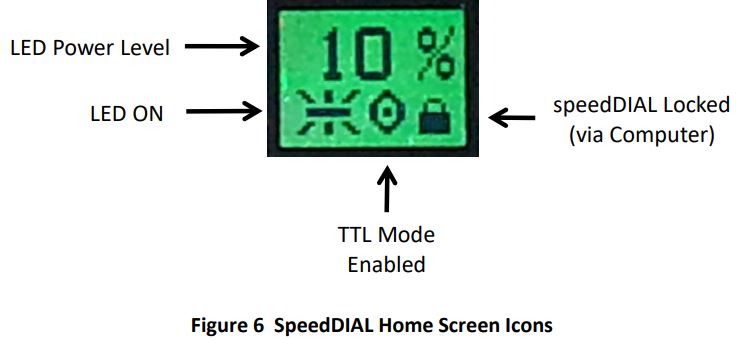

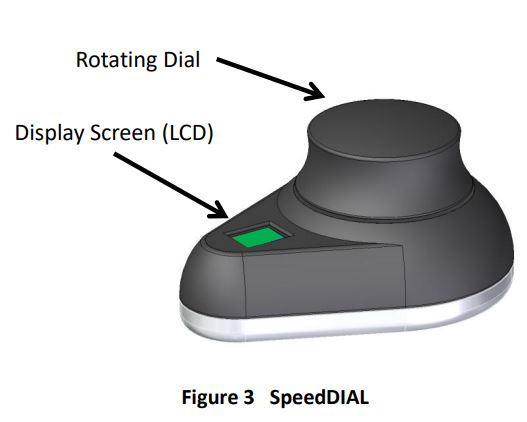

Manual Control – speedDIAL ON/OFF
  Speed sensitive intensity control
  1 favorite intensity setting
  Left and right-handed control option
  Intensity control
  Compatible with X-Cite 120PC, X-Cite exacte, X-Cite 120LED and X-Cite 110LED drivers
