Moticam BTi10 WiFi Tablet Camera 10 Inch
Moticam BTI10 WiFi Tablet Camera 10 Inch
Add to Cart

Delivery Time

In-stock items will ship same day if order is placed by 12 pm EST.

Moticam BTI10 WiFi Tablet Camera

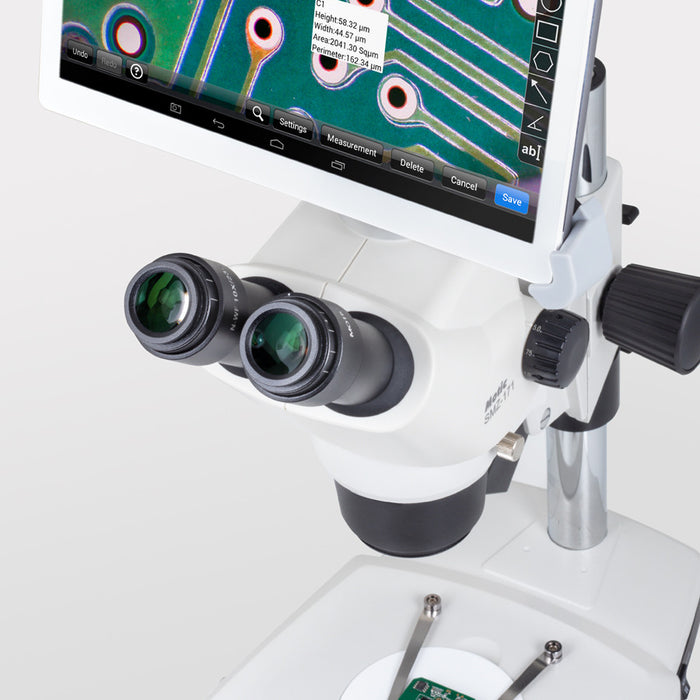

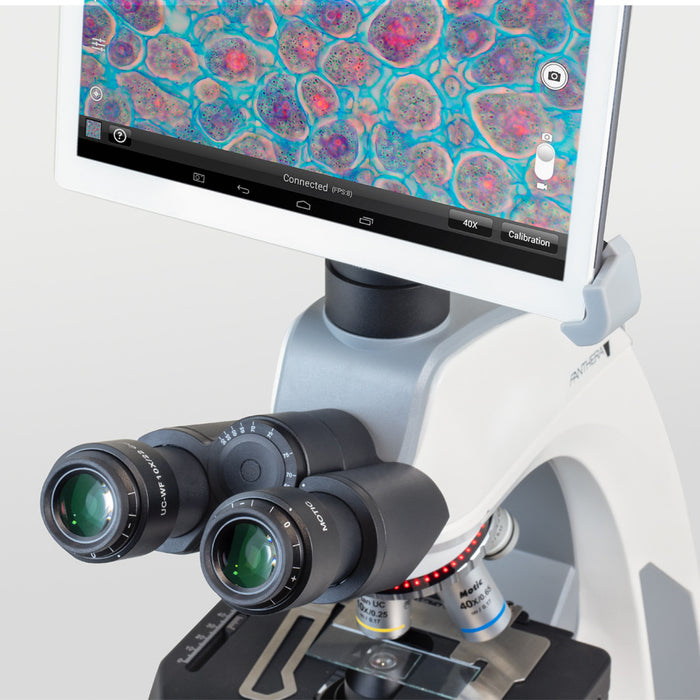

The Moticam BTI10 unlike other Moticams is combined with a 4.0MP and a 10" Android tablet that will deliver fast live images up to 30 fps on any trinocular microscope with the right C-mount adapter.With the convenience of a detachable tablet and WiFi image data transfer, the flexibility to capture images and bring your images anywhere has never been so easy.By using our pre-installed app, MotiConnect, simply log on with your tablet and begin to capture, edit, and save your images.















































































































































































































Camera Specifications
Sensor Type CMOS
Sensor Size 1/3"
Imaging Area 5.44x3.07mm
Capture Resolution Info
4MP (2592x1520 pixels)
Live display mode through Wi-Fi 1280x720, 1920x1080 pixels (Full HD)
Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
Pixel size 2.0x2.0μm
Scan mode Progressive
Data transfer Wi-Fi (2.4 & 5 GHz), Ethernet
Max. frames per second (fps) 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
Exposure time 0.03 msec to 0.03 sec
Operating temperature From 0 to +60 Degrees Celsius non condensing
Max. signal to noise ratio 38.3dB
Dynamic range 64.6dB
Sensitivity 1.9V/Lux-sec (550nm)
Buttons On/Off
Support device Universal Web browser (HTML5)
Supported OS Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher
Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount C-Mount
Screen 10" IPS Tablet
Software MotiConnect App for iOS and Android (pre-installed)
Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply 12V (External Power supply)

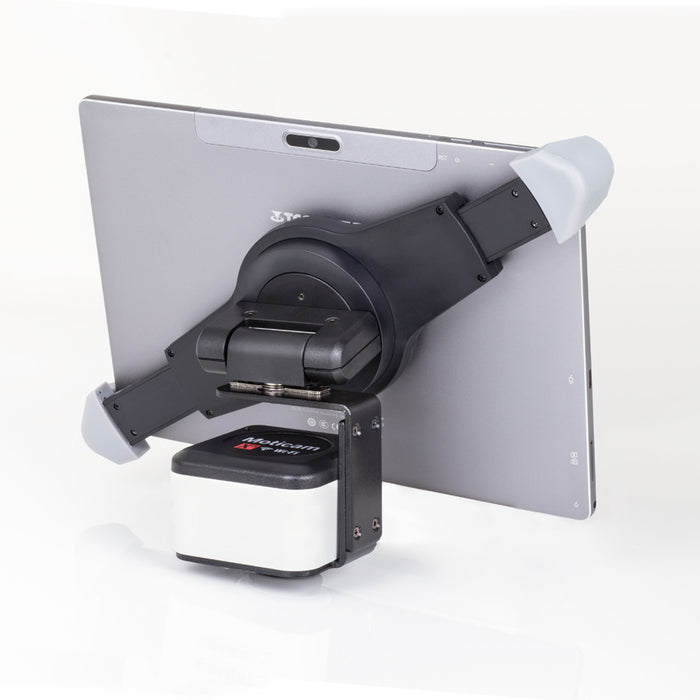

Tablet bracket holder For tablets from 7” to 10”
Package includes USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)

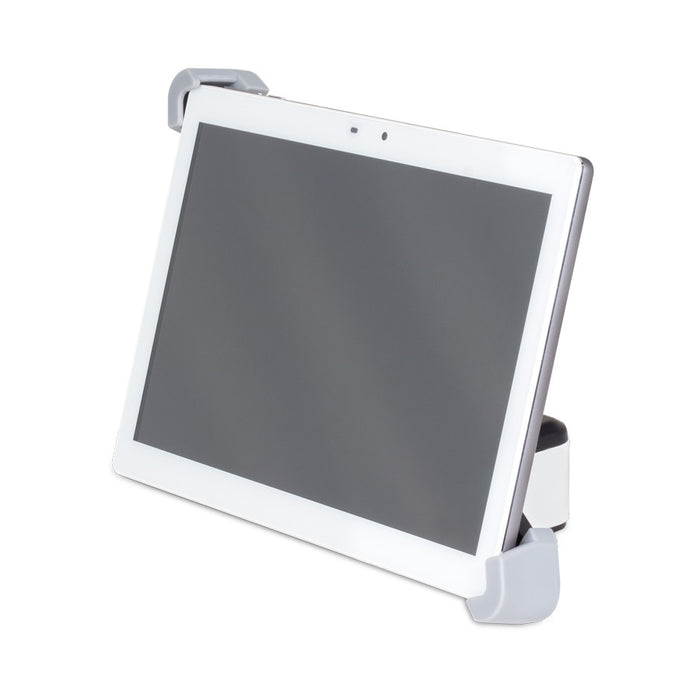

Tablet Specifications
Size (mm) 218x136x10mm
System Android 10
Pre-installed App MotiConnect
Language Multi-Language
CPU 2.0GHz 8-core
RAM 6GB DDR3
NAND Flash 128GB
Display 10" (IPS) 16:10 Ratio
Display resolutions 1920x1200
Touch Panel Capacitive Multi-Touch Screen
GPU MALI-G720 MP3
Ports MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
Speaker 8Ω/0.7Wx2
Mic MIC (Internal)
Wi-Fi 802.11b/g/n
Bluetooth 4.0
Camera Front (5M Pixels) + Rear (8M Pixels)
Support display format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
Support audio format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
Picture format JPG, JPEG, GIF, BMP, PNG
Battery 3.7V/3500mAh Rechargeable Battery
Power supply tablet Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging）
Certifications FCC CE
Color White
