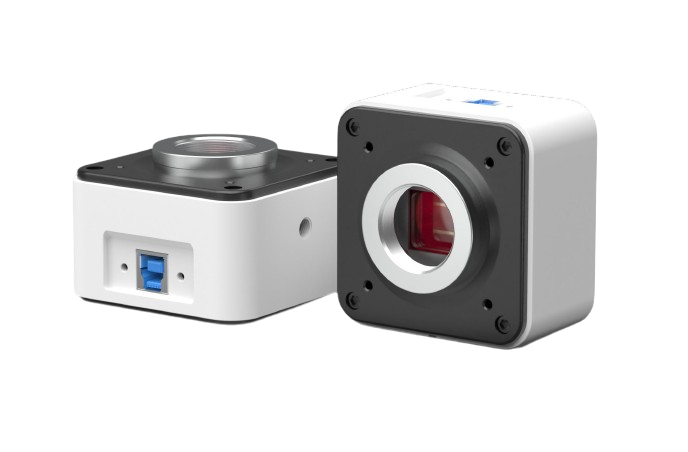

Tucsen MIchrome 5 Pro is a 5MP USB3.0 scientific microscope camera designed for fluorescence microscopy, brightfield imaging, live stitching, live extended depth-of-field imaging, biological microscopy, research documentation, and advanced software-controlled image capture. It uses a Sony IMX264LQR-C color CMOS sensor with global shutter technology to capture crisp, undistorted images of dynamic samples and moving specimens.
Unlike basic USB microscope cameras or standalone HDMI cameras, the MIchrome 5 Pro is built for computer-controlled scientific imaging workflows where exposure control, sensitivity, live acquisition, measurement, image processing, and documentation are important. Tucsen specifically positions this model for fluorescence imaging applications because of its global shutter performance and higher sensitivity compared with traditional CCD camera workflows. :contentReference[oaicite:0]{index=0}
Key Features: 5MP USB3.0 microscope camera • Sony IMX264LQR-C CMOS sensor • global shutter • 2448 × 2048 resolution • 3.45 µm pixels • 36 fps @ USB3.0 • 16/8-bit output • live stitching • live EDF • Mosaic software • fluorescence imaging support • C-mount compatibility • TIFF/JPG/PNG/DICOM image formats
Ideal Applications:
• Fluorescence microscopy & low-light image capture
• Biological microscopy & research documentation
• Brightfield, phase contrast & transmitted-light imaging
• Live image stitching for larger field documentation
• Live EDF for extended depth-of-field imaging
• Dynamic samples and moving specimen capture
• Clinical, educational & laboratory documentation
• Industrial, metallurgical & inspection microscopy
Fluorescence & Scientific Imaging: The MIchrome 5 Pro is one of the strongest cameras in the MIchrome lineup for fluorescence microscopy because it combines 3.45 µm pixels, 5MP resolution, USB3.0 transfer speed, and global shutter image capture. It is a strong fit for users who need a practical scientific camera for fluorescence, brightfield, laboratory documentation, and research imaging without moving into a much more expensive cooled sCMOS platform.
Global Shutter Technology: Global shutter capture exposes all pixels simultaneously, helping reduce distortion and deformation when imaging dynamic samples or moving specimens. This makes the MIchrome 5 Pro different from rolling-shutter USB microscope cameras and valuable for applications where image geometry and motion capture matter. :contentReference[oaicite:1]{index=1}
Live Stitching & Live EDF: With Tucsen Mosaic software, the MIchrome 5 Pro supports live image stitching for generating larger mosaic images while moving the stage and live EDF for combining multiple focal planes into a clearer extended-depth image. These tools are useful for biological sections, stereo microscope specimens, metallurgical samples, inspection work, and documentation where a single field of view or focal plane is not enough. :contentReference[oaicite:2]{index=2}
Sensor & Imaging Performance: The camera uses a Sony IMX264LQR-C color CMOS sensor with 2448(H) × 2048(V) resolution, 3.45 µm pixels, an 11.1 mm sensor diagonal, and 36 fps USB3.0 imaging. The current Tucsen product page lists an 8.4 mm × 7.1 mm effective area, while the MIchrome series specification sheet lists 4.6 mm × 2.6 mm for this model; use the current Tucsen page value when entering product specs unless Tucsen confirms otherwise. :contentReference[oaicite:3]{index=3} :contentReference[oaicite:4]{index=4}
Specifications:
• Model: Tucsen MIchrome 5 Pro
• Camera Type: USB3.0 scientific microscope camera
• Sensor Type: CMOS
• Sensor Model: Sony IMX264LQR-C
• Color/Mono: Color
• Sensor Diagonal: 11.1 mm
• Resolution: 5MP, 2448(H) × 2048(V)
• Pixel Size: 3.45 µm × 3.45 µm
• Effective Area: 8.4 mm × 7.1 mm
• Shutter Mode: Global shutter
• Frame Rate: 36 fps @ USB3.0
• Exposure Time: 121 µs - 15 s
• Binning: 2×2, 3×3, 4×4
• Bit Depth: 16/8-bit
• Color Temperature: 2000-15000K
• Software: Tucsen Mosaic
• Image Formats: TIFF, JPG, PNG, DICOM
• Multiple Cameras: Supports 4 cameras simultaneously in SDK
• SDK: C/C++, C#, DirectShow/Twain
• Optical Interface: Standard C-mount
• Data Interface: USB3.0
• Power Consumption: 3 W
• Dimensions: 68 mm × 68 mm × 46 mm
• Weight: 327 g
Microscope Compatibility: The MIchrome 5 Pro uses a standard C-mount interface and can be adapted to many trinocular biological microscopes, fluorescence microscopes, metallurgical microscopes, polarizing microscopes, stereo microscopes, and inspection microscope systems. Correct C-mount adapter magnification depends on the microscope camera port, sensor size, desired field of view, and whether the user wants to prioritize full-field capture or magnified detail.
Accu-Scope Excelis / OEM Cross-Shopping Note: Tucsen manufactures camera platforms used in OEM microscope camera systems across the industry. Buyers comparing Accu-Scope Excelis camera options, including MPX-style fluorescence-capable USB camera workflows, may find the MIchrome 5 Pro relevant when evaluating a 5MP USB3 global shutter camera for fluorescence, brightfield, and research microscopy applications.
Why Choose the MIchrome 5 Pro? Choose the MIchrome 5 Pro when you need a USB3 scientific microscope camera with stronger fluorescence suitability than basic microscope cameras, global shutter capture, useful 5MP resolution, Mosaic software tools, live stitching, live EDF, and a practical C-mount workflow for research, clinical, industrial, or educational microscopy.
