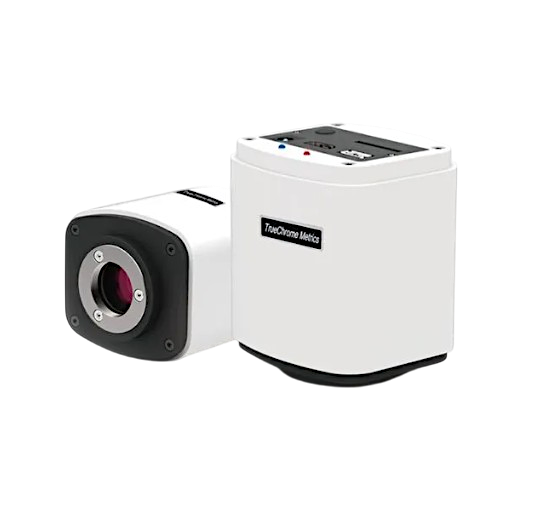

Tucsen TrueChrome Metrics is a standalone HDMI microscope camera designed for real-time measurement, industrial inspection, stereomicroscope imaging, educational microscopy, and digital documentation workflows. It combines HDMI live output, onboard measurement functionality, USB connectivity, SD card image storage, and standalone operation without requiring a dedicated computer.
The TrueChrome Metrics is especially useful for stereo microscope inspection systems, electronics inspection, PCB analysis, machining inspection, metrology workflows, quality control, manufacturing, classroom display, and laboratory imaging applications where users need direct-to-monitor viewing with integrated measurement capability.
Key Features: HDMI microscope camera • real-time measurement tools • standalone operation without a computer • 1080P live imaging • HDMI monitor output • SD card image capture • USB2.0 connectivity • integrated image processing • C-mount compatibility • industrial inspection imaging • educational microscopy support
Ideal Applications:
• Industrial inspection & quality control
• Electronics, PCB inspection & soldering workflows
• Machining, assembly & manufacturing inspection
• Stereo microscope imaging systems
• Dimensional measurement workflows
• Educational microscopy & classroom display
• Laboratory imaging & digital documentation
Standalone HDMI Microscope Imaging: The TrueChrome Metrics can operate directly through an HDMI monitor without a PC workstation. Users can connect the camera to a display for smooth live microscope imaging, measurement, capture, and documentation using a simplified standalone workflow.
Integrated Measurement Functionality: The TrueChrome Metrics is designed for applications requiring fast live measurement and dimensional analysis directly at the microscope, making it a strong choice for industrial QA, electronics inspection, machining workflows, manufacturing inspection, and educational demonstration environments.
Sensor & Imaging Performance: The camera features 1920 × 1080 resolution, 2.9 µm pixels, a 6.46 mm sensor diagonal, and 25 fps HDMI live imaging. HDMI preview is 1920 × 1080, capture resolution is 3264 × 1840, and video recording is supported at 25 fps @ 1080P.
Specifications:
• Model: Tucsen TrueChrome Metrics
• Camera Type: HDMI microscope camera with measurement tools
• Sensor Type: CMOS color sensor
• Resolution: 1920(H) × 1080(V)
• Pixel Size: 2.9 µm × 2.9 µm
• Sensor Diagonal: 6.46 mm
• Effective Area: 5.6 mm × 3.1 mm
• Frame Rate: 30 fps @ USB2.0, 25 fps @ HDMI
• Exposure Time: 1 µs - 1 s
• HDMI Preview: 1920 × 1080
• Capture Resolution: 3264 × 1840
• Video Recording: 25 fps @ 1080P
• Data Interfaces: HDMI, USB2.0, SD card
• Image Formats: TIFF, JPG, PNG, DICOM
• Shutter Mode: Rolling shutter
• Color Temperature: 1800K - 10000K
• Optical Interface: Standard C-mount
• Power Consumption: 2.4 W
• Dimensions: 90.7 mm × 78 mm × 70.8 mm
• Weight: 265 g
Microscope Compatibility: The TrueChrome Metrics uses a standard C-mount interface and can be adapted to many stereo microscopes, trinocular biological microscopes, industrial inspection systems, and optical imaging platforms. Proper adapter magnification depends on the microscope system and desired field of view.
Why Choose the TrueChrome Metrics? Choose this camera when you need a simple HDMI microscope camera with built-in live measurement functionality. It is optimized for direct monitor viewing, dimensional inspection, image capture, and standalone documentation in industrial, educational, and stereomicroscope workflows.
