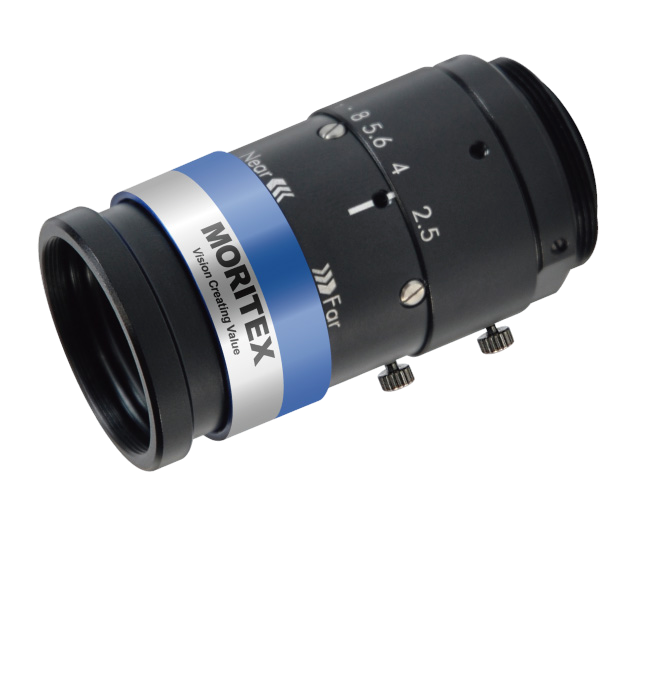

Moritex ML-M3520UR 35mm 2/3" 5MP Machine Vision Lens

35mm 2/3" 5MP Machine Vision Lens

The Moritex ML-M3520UR is a high-resolution 35mm fixed focal length C-mount lens designed for 2/3" 5MP sensors with 2.2μm pixel size. Delivering up to 200 lp/mm resolving power, this lens is ideal for machine vision systems requiring a narrow field of view, longer working distances, and precise image detail in demanding industrial environments.

Key Features

• 35mm focal length for narrow field of view and high magnification

• Designed for 2/3" sensors

• Supports 5MP resolution (2.2μm pixel size)

• 200 lp/mm resolving power

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged, vibration-resistant construction

• Locking focus and iris controls

• Compact design for system integration

Typical Applications

• High-precision inspection and metrology

• Semiconductor and PCB inspection

• Robotics and automation systems

• Dimensional measurement

• Surface defect detection

• Inspection tasks requiring longer working distances

Technical Specifications

Manufacturer: Moritex

Model: ML-M3520UR

Focal Length: 35mm

Max Aperture: F2.0

Sensor Format: 2/3" (11mm image circle)

Resolution: 5MP / 200 lp/mm

Mount: C-Mount (17.526mm flange back)

Minimum Object Distance: 200mm

Filter Thread: M25.5 × 0.5

Dimensions: 29.5 × 39 mm

Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for 2/3" 5MP machine vision sensors with 2.2μm pixel size. Ideal for applications that require tighter framing and longer working distances than 25mm lenses.

What’s Included & Ordering Notes

• Moritex ML-M3520UR Lens

• Protective caps


These lenses are typically built to order. Lead times vary depending on availability. Contact us for current lead time and application support.

Why Buy from Empire Optics?

• Fast, expert support (typically under 1 hour)

• Application guidance to ensure correct lens selection

• Authorized supplier of Moritex machine vision optics

• Trusted by engineers, integrators, and manufacturers
