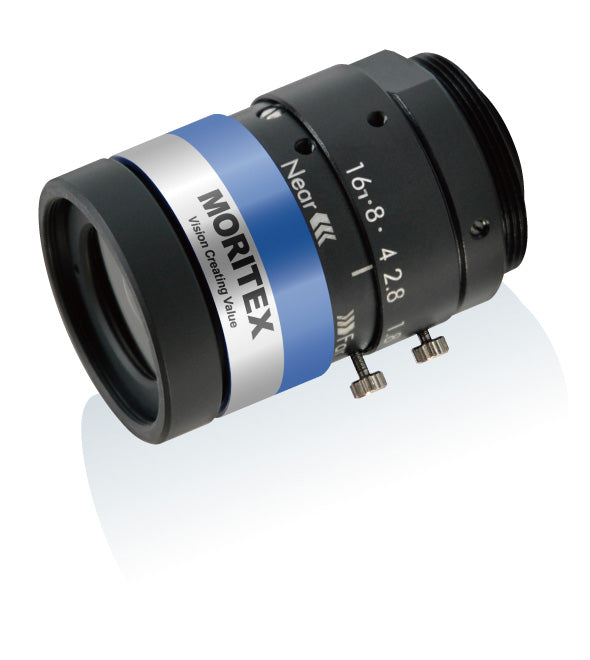

Moritex ML-M0822UR 8mm 2/3" 5MP Machine Vision Lens

8mm 2/3" 5MP Machine Vision Lens

The Moritex ML-M0822UR is a high-resolution 8mm fixed focal length C-mount lens designed for 2/3" 5MP sensors with 2.2μm pixel size. Delivering up to 200 lp/mm resolving power, this lens is optimized for modern machine vision systems that need a wider field of view than a 12mm lens while maintaining sharp image quality, stable performance, and rugged reliability in demanding industrial environments.

Key Features

• 8mm focal length for wider field of view applications

• Designed for 2/3" sensors

• Supports 5MP resolution (2.2μm pixel size)

• 200 lp/mm resolving power

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged, vibration-resistant construction

• Locking focus and iris controls

• Compact design for system integration

Typical Applications

• Wide-area machine vision inspection

• PCB and electronics inspection

• Automation and robotics systems

• Barcode and label reading

• Presence/absence verification

• General industrial inspection

Technical Specifications

Manufacturer: Moritex

Model: ML-M0822UR

Focal Length: 8mm

Max Aperture: F2.2

Sensor Format: 2/3" (11mm image circle)

Resolution: 5MP / 200 lp/mm

Mount: C-Mount (17.526mm flange back)

Minimum Object Distance: 100mm

Filter Thread: M25.5 × 0.5

Dimensions: 29.5 × 38 mm

Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for 2/3" 5MP machine vision sensors with 2.2μm pixel size. A strong fit for systems where a shorter focal length is needed to capture a broader inspection area without stepping all the way down to a 6mm lens.

What’s Included & Ordering Notes

• Moritex ML-M0822UR Lens

• Protective caps


These lenses are typically built to order. Lead times vary depending on availability. Contact us for current lead time and application support.
