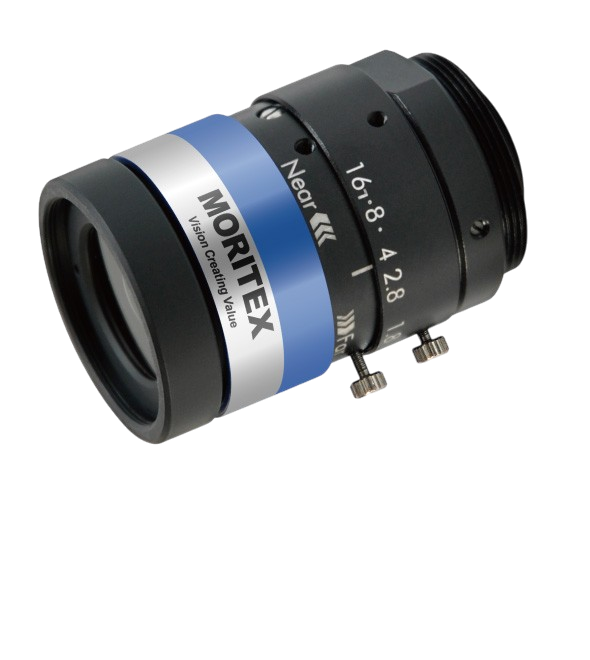

Moritex ML-M2516UR 25mm 2/3" 5MP Machine Vision Lens

25mm 2/3" 5MP Machine Vision Lens

The Moritex ML-M2516UR is a high-resolution 25mm fixed focal length C-mount lens designed for 2/3" 5MP sensors with 2.2μm pixel size. Delivering up to 200 lp/mm resolving power, this lens is ideal for machine vision systems that need a narrower field of view, greater working distance flexibility, and sharp, repeatable imaging in demanding industrial environments.

Key Features

• 25mm focal length for narrower field of view and increased magnification

• Designed for 2/3" sensors

• Supports 5MP resolution (2.2μm pixel size)

• 200 lp/mm resolving power

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged, vibration-resistant construction

• Locking focus and iris controls

• Compact design for system integration

Typical Applications

• Precision inspection and metrology

• Semiconductor and PCB inspection

• Robotics and automation systems

• Dimensional measurement

• Surface defect detection

• Inspection tasks requiring tighter framing than 16mm lenses

Technical Specifications

Manufacturer: Moritex

Model: ML-M2516UR

Focal Length: 25mm

Max Aperture: F1.6

Sensor Format: 2/3" (11mm image circle)

Resolution: 5MP / 200 lp/mm

Mount: C-Mount (17.526mm flange back)

Minimum Object Distance: 150mm

Filter Thread: M25.5 × 0.5

Dimensions: 29.5 × 39 mm

Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for 2/3" 5MP machine vision sensors with 2.2μm pixel size. A strong fit for applications that require tighter framing and more magnification than 12mm or 16mm lenses.

What’s Included & Ordering Notes

• Moritex ML-M2516UR Lens

• Protective caps


These lenses are typically built to order. Lead times vary depending on availability. Contact us for current lead time and application support.
