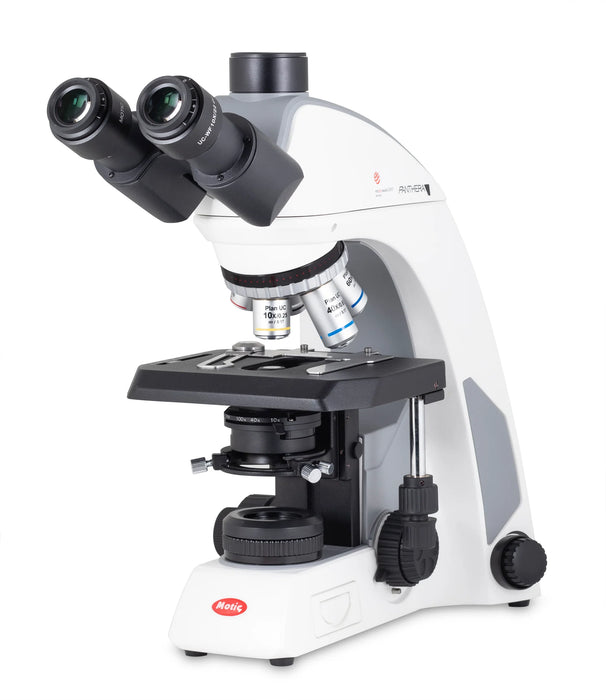

Motic Panthera C2 Upright Compound Microscope

Panthera C2 features Stunning, Ultra Contrast Optics for best insights, convincing performance of the dual-slide holder for one-hand operation, and intelligent light management with an LED “Feedback indicator”: a setup ready to smoothen your daily workflow. The Panthera C2 is prepared for Phase contrast with slider or revolving turret condenser, Polarization contrast, and Darkfield illumination. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with traditional Mercury ARC Lamps.

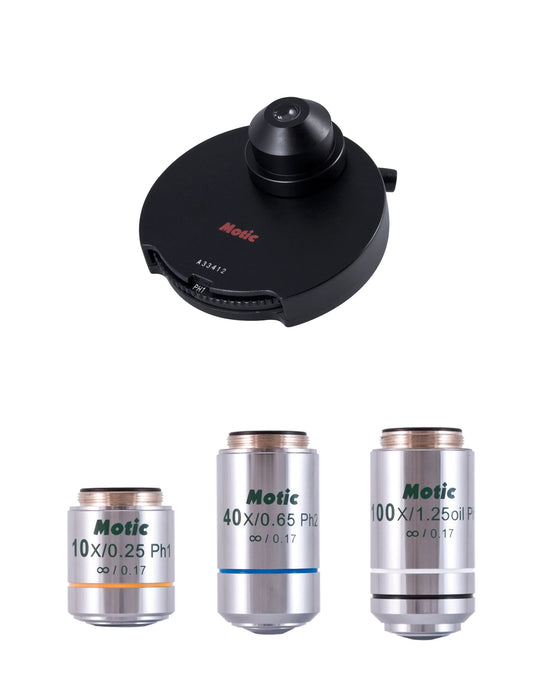

The Panthera phase package includes all the phase accessories required for phase contrast applications.

Specifications:

• Trinocular (50:50 Split) head Siedentopf type 25° inclined, 360° rotating


• Widefield high eyepoint eyepiece UC-WF10X/22mm


• Reversed quintuple revolving nosepiece including light intensity Indication on nosepiece for light intensity setting.


• CCIS Plan Achromat UC objectives 4x,10x,40x 0.65/S Plan Achromat Phase UC PH2


• Built in low position coaxial rackless stage with right hand control


• Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot OR Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser


• Coaxial coarse and fine focusing adjustment with tension adjustment


• Koehler illumination with 3W LED and intensity control, auto -on-off sleep mode, Motic LightTracer: Light memory


• Integrated onboard Cord Storage


• Integrated USB Port for Camera Power


• Includes Power cord, Allen hexagonal key, vinyl dust cover, Instruction manual


• 5 Year Mechanical & 1 Year Electrical Warranty
