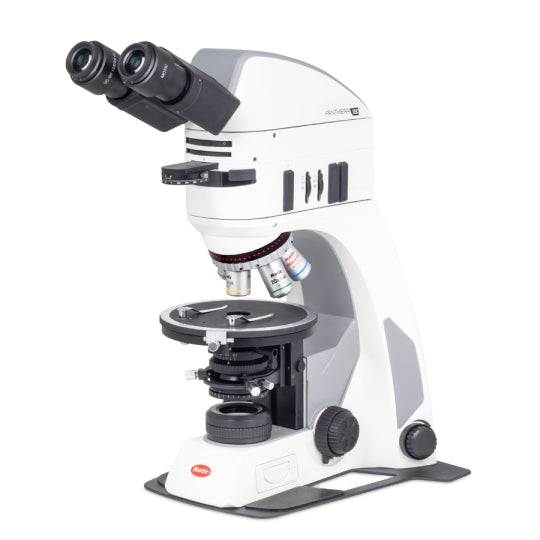

Motic Panthera TEC POL
Motic Panthera TEC POL
Add to Cart

Delivery Time

In-stock items will ship same day if order is placed by 12 pm EST.

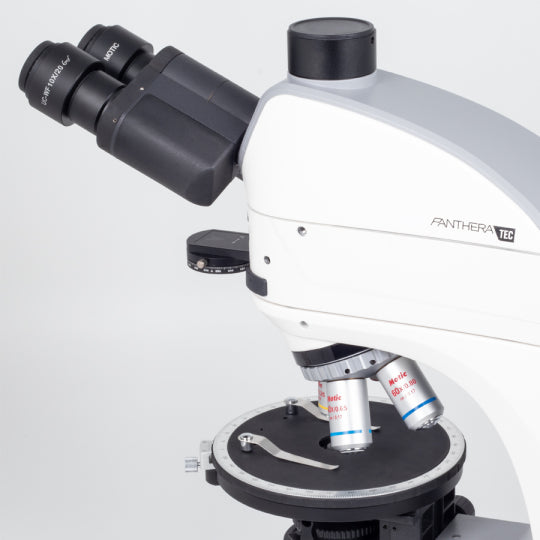

Motic Panthera TEC POL


Explore the versatile capabilities of Panthera TEC POL models, designed for optimal performance in inspecting a wide range of polarizing materials. Ideal for applications in technical education settings and industrial quality control, these models excel in examining both transparent samples and opaque specimens. The advanced Full Koehler illumination, featuring an interchangeable LED/Halogen light source, enables the detection of transparent birefringent structures in biology and medicine, such as heart muscle cells and secondary cell walls.


Enhanced with UC Plan Achromat objectives, the Panthera TEC POL models prioritize strain-free mounting to achieve maximum darkness of the image background. The 5-fold encoded nosepiece memorizes light intensity for each objective position, ensuring consistent illumination replication upon repositioning. The compact Epi illuminator, equipped with a slot for polarizer and analyzer, facilitates easy setup of Polarization contrast and minimizes internal reflections. The Intermediate tube with a focusable/centerable Bertrand lens is tailored for conoscopic analysis of crystals and minerals in transmitted light.


Featuring an extended 22mm Field of View (FOV), providing 21% more visual area compared to basic 20mm FOV systems, the Panthera TEC POL models cater to material sciences. Trinocular versions with a 25° viewing angle maintain a fixed beam split of 50/50 (visual/camera port). The 3W LED incident light source allows effortless color temperature adjustment (3500K/5500K). Both incident and transmitted stands support Full Koehler illumination with LED/Halogen interchangeability.


The 360° rotatable stage ensures smooth sample positioning, allowing precise alignment with the eyepiece reticle. Now, with Panthera TEC POL models, even opaque industrial samples can be examined to detect bireflection on flat polished/etched surfaces. Offering brilliant optics for significant image results, flexible setups with a smart illumination concept, and models with integrated cameras for documentation and image sharing, the Panthera TEC POL series is poised to significantly streamline your daily work in material sciences.


Key Features:



  • Full Koehler Illumination: Equipped with an interchangeable LED/Halogen light source for detecting transparent birefringent structures.

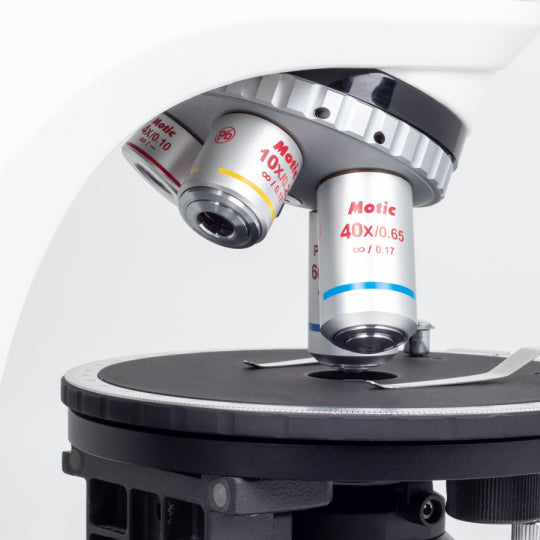

  • Optical Excellence: UC Plan Achromat objectives provide strain-free mounting, ensuring maximum darkness of the image background.

  • Consistent Illumination: 5-fold encoded nosepiece memorizes light intensity for each objective position, ensuring reliable illumination replication.

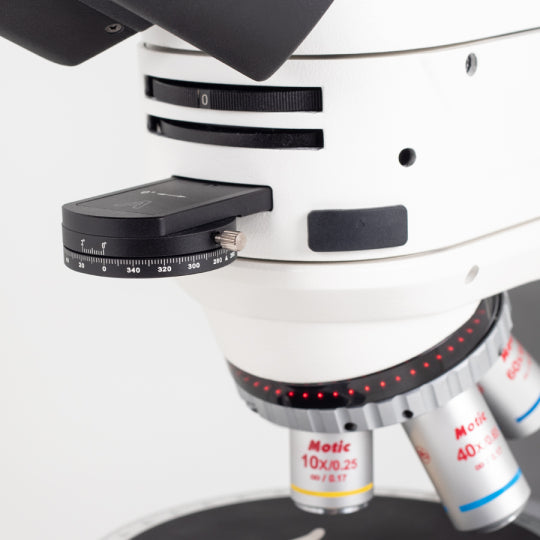

  • Advanced Epi Illuminator: Compact design with a slot for polarizer and analyzer, facilitating Polarization contrast and minimizing internal reflections.

  • Versatile Analysis: Intermediate tube with focusable/centerable Bertrand lens for conoscopic analysis of crystals and minerals in transmitted light.

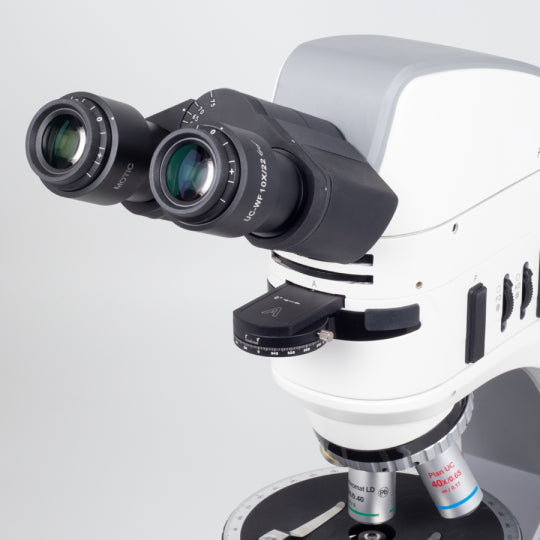

  • Enhanced Field of View: Extended 22mm Field of View offers 21% more visual area compared to basic systems.

  • Trinocular Versions: 25° viewing angle with a fixed beam split of 50/50 (visual/camera port) for effective observation and documentation.

  • Color Temperature Adjustment: 3W LED incident light source with easily adjustable color temperatures (3500K/5500K).

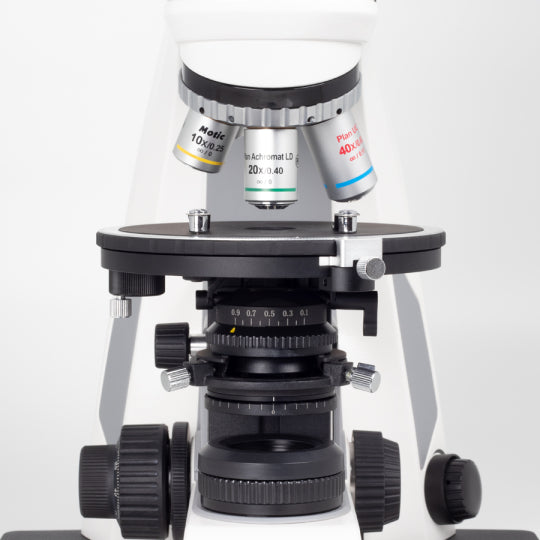

  • 360° Rotatable Stage: Smooth rotation for easy positioning of samples, ensuring precise alignment with the eyepiece reticle.

  • Material Sciences Focus: Tailored for material sciences, capable of examining both transparent and opaque samples, including industrial specimens.

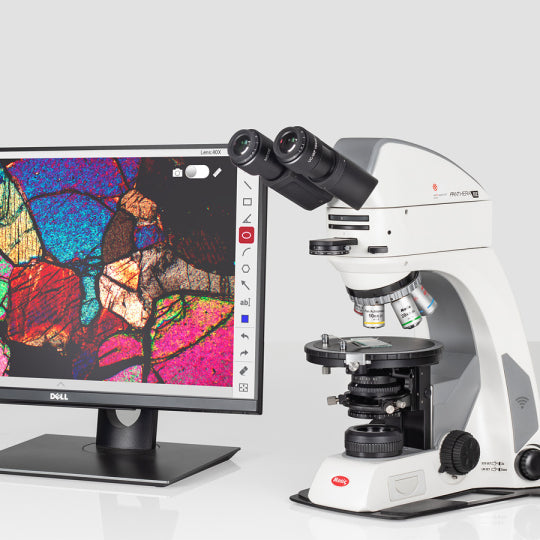

  • Documentation and Sharing: Models with integrated cameras for image documentation and sharing, facilitating streamlined daily work.
