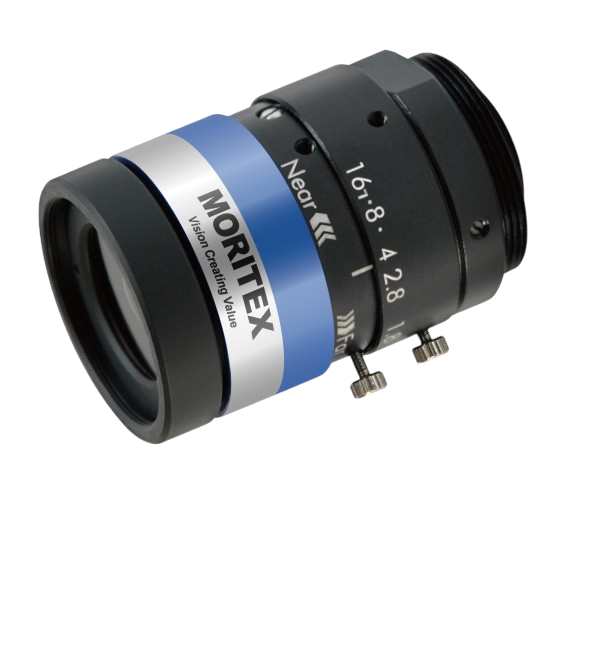

Moritex ML-M1616UR 16mm 2/3" 5MP Machine Vision Lens

16mm 2/3" 5MP Machine Vision Lens

The Moritex ML-M1616UR is a high-resolution 16mm fixed focal length C-mount lens designed for 2/3" 5MP sensors with 2.2μm pixel size. Delivering up to 200 lp/mm resolving power, this lens is ideal for machine vision systems requiring a narrower field of view and higher magnification while maintaining excellent image sharpness and stability.

Key Features

• 16mm focal length for tighter field of view and increased detail

• Designed for 2/3" sensors

• Supports 5MP resolution (2.2μm pixel size)

• 200 lp/mm resolving power

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged, vibration-resistant construction

• Locking focus and iris controls

• Compact design for system integration

Typical Applications

• Precision inspection and metrology

• Semiconductor and PCB inspection

• Robotics and automation systems

• Dimensional measurement

• Surface defect detection

Technical Specifications

Manufacturer: Moritex

Model: ML-M1616UR

Focal Length: 16mm

Max Aperture: F1.6

Sensor Format: 2/3" (11mm image circle)

Resolution: 5MP / 200 lp/mm

Mount: C-Mount (17.526mm flange back)

Minimum Object Distance: 150mm

Filter Thread: M25.5 × 0.5

Dimensions: 29.5 × 37 mm

Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for 2/3" 5MP machine vision sensors with 2.2μm pixel size. Ideal for applications requiring more magnification and tighter framing than 12mm lenses.

What’s Included & Ordering Notes

• Moritex ML-M1616UR Lens

• Protective caps


These lenses are typically built to order. Lead times vary depending on availability. Contact us for current lead time and application support.
