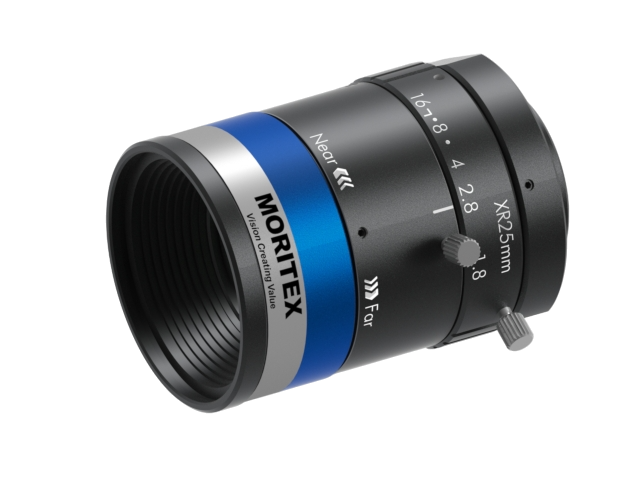

Moritex ML-MC2518XR 25mm 1.1" 20MP Machine Vision Lens

25mm 1.1" 20MP Machine Vision Lens

The Moritex ML-MC2518XR is a high-resolution 25mm fixed focal length C-mount lens designed for 1.1" sensors and modern 20MP machine vision applications. Optimized for ~2.2µm pixel size sensors, this lens delivers exceptional resolving power, low distortion, and consistent imaging performance for precision inspection and metrology systems.

Key Features

• 25mm focal length for tighter field of view and inspection detail

• Designed for 1.1" sensors (17.6mm image circle)

• Optimized for ~2.2µm pixel size (Sony Pregius S class sensors)

• Supports high-resolution 20MP imaging

• High resolving power for precision inspection

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged, vibration-resistant construction

• Manual focus and iris with locking screws

Typical Applications

• Semiconductor inspection and metrology

• Electronics and PCB inspection

• Precision measurement systems

• Robotics and automation

• Surface defect detection

• High-resolution inline inspection

Technical Specifications

Manufacturer: Moritex

Model: ML-MC2518XR

Focal Length: 25mm

Max Aperture: F1.8

Sensor Format: 1.1" (17.6mm image circle)

Resolution: 20MP / optimized for ~2.2µm pixels

Mount: C-Mount

Filter Thread: M35.5 × 0.5

Working Distance: ~19.3mm

Coating: Broadband Vis/NIR AR (400–1000nm)

Compatibility

Optimized for Sony Pregius S sensors and other high-resolution 1.1" machine vision cameras. Ideal for applications requiring maximum image detail and precision.

What’s Included & Ordering Notes

• Moritex ML-MC2518XR Lens

• Protective caps


These systems are built to order. Contact us for current availability and lead times.
