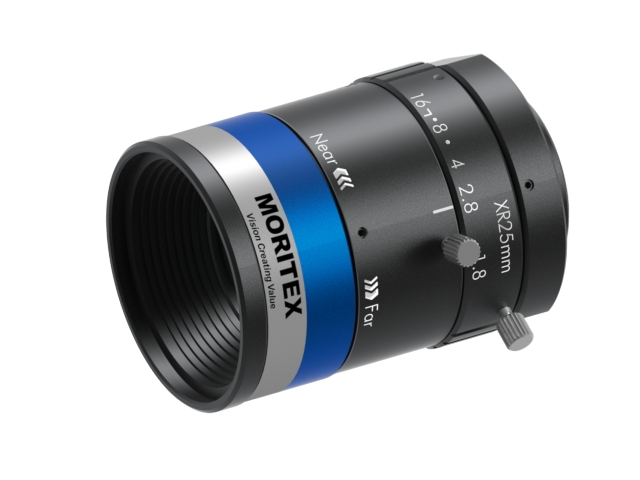

Moritex ML-MC2528XR 25mm 1.1" 20MP Low Distortion Machine Vision Lens

25mm 1.1" 20MP Low Distortion Machine Vision Lens

The Moritex ML-MC2528XR is a high-resolution 25mm low distortion C-mount lens designed for 1.1" sensors and modern 20MP machine vision systems. Engineered for applications requiring maximum measurement accuracy, this lens minimizes distortion while maintaining high resolving power for precision inspection, metrology, and automation.

Key Features

• 25mm focal length with low distortion optical design

• Designed for high-accuracy measurement and gauging systems

• Designed for 1.1" sensors (17.6mm image circle)

• Optimized for ~2.2µm pixel size sensors

• Supports high-resolution 20MP imaging

• High resolving power with improved geometric accuracy

• Broadband Vis/NIR AR coating (400–1000nm)

• Rugged industrial construction with locking controls

Typical Applications

• Precision dimensional measurement

• Metrology and gauging systems

• Semiconductor inspection

• PCB and electronics inspection

• Robotics requiring geometric accuracy

• High-accuracy alignment systems

Technical Specifications

Manufacturer: Moritex

Model: ML-MC2528XR

Full Part Number: ML-MC2528XR-18CB

Focal Length: 25mm

Max Aperture: F2.8

Sensor Format: 1.1" (17.6mm image circle)

Resolution: 20MP / optimized for ~2.2µm pixels

Mount: C-Mount

Filter Thread: M30.5 × 0.5

Coating: Broadband Vis/NIR AR (400–1000nm)

Version: Low Distortion

Compatibility

Optimized for Sony Pregius S class sensors and other high-resolution 1.1" cameras where distortion control is critical for measurement accuracy and repeatable inspection results.

What’s Included & Ordering Notes

• Moritex ML-MC2528XR Lens

• Protective caps


These systems are built to order. Contact us for current availability and lead times.
